Physical-alias v4 breast ROI g-factor/PPA

Geometry-derived breast ROI between medial and lateral H-F/near-vertical conductor elements. This is not an anatomy mask.

Red straight lines in the slice QA image mark evaluated slice positions. Red contour in condition maps shows the exact ROI used for scaling and ranking. Conductor overlays are preserved.

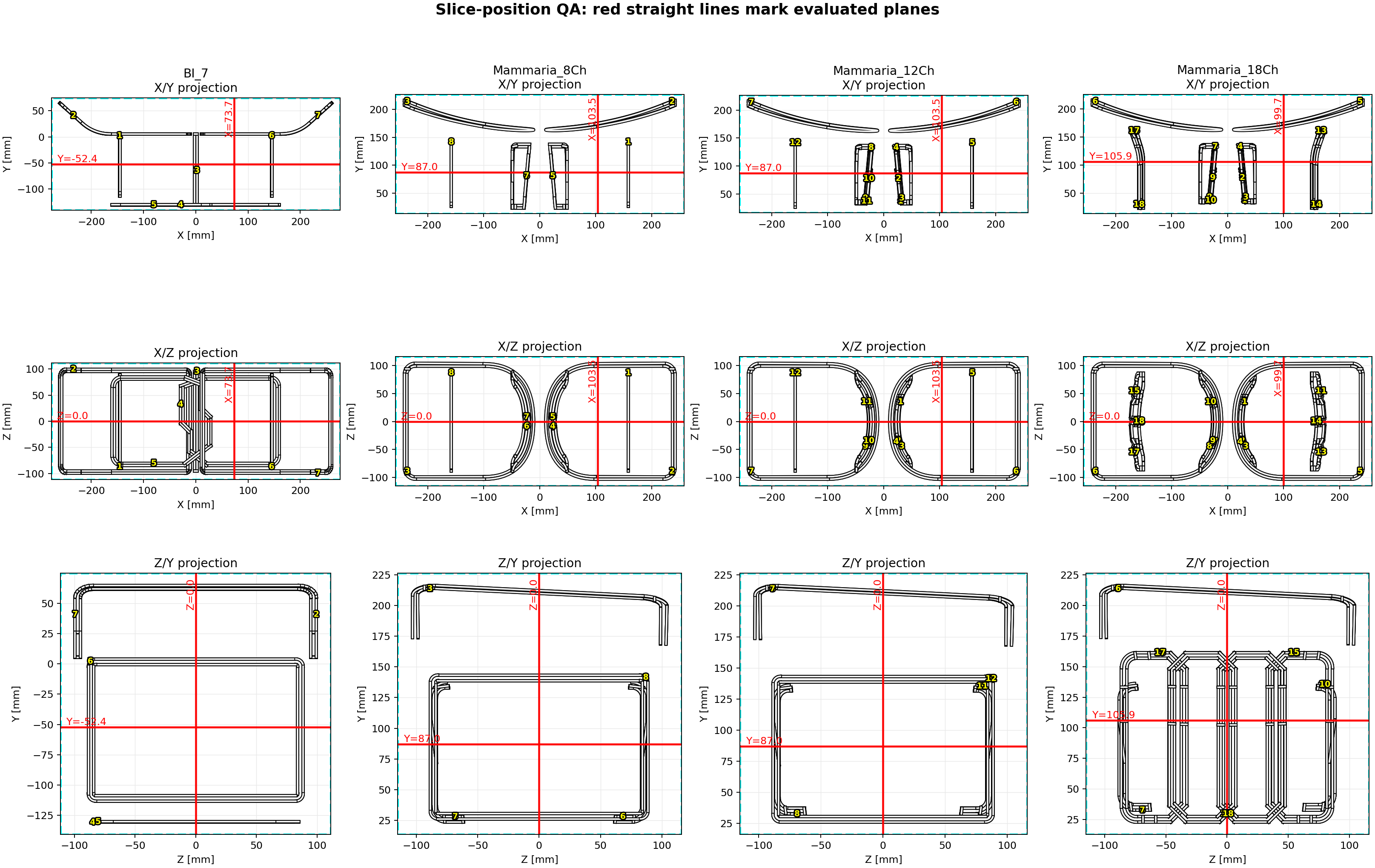

Three-Plane Slice Position QA

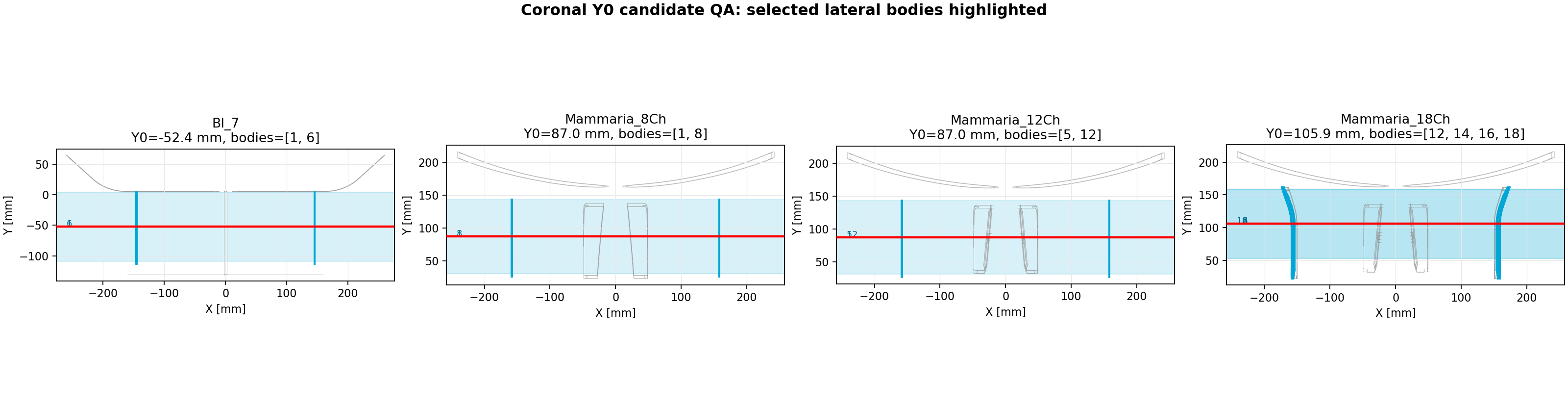

Coronal Y0 Candidate QA

Cyan traces mark selected lateral bodies used for coronal-Y midheight. The red horizontal line is the final coronal_Y0.

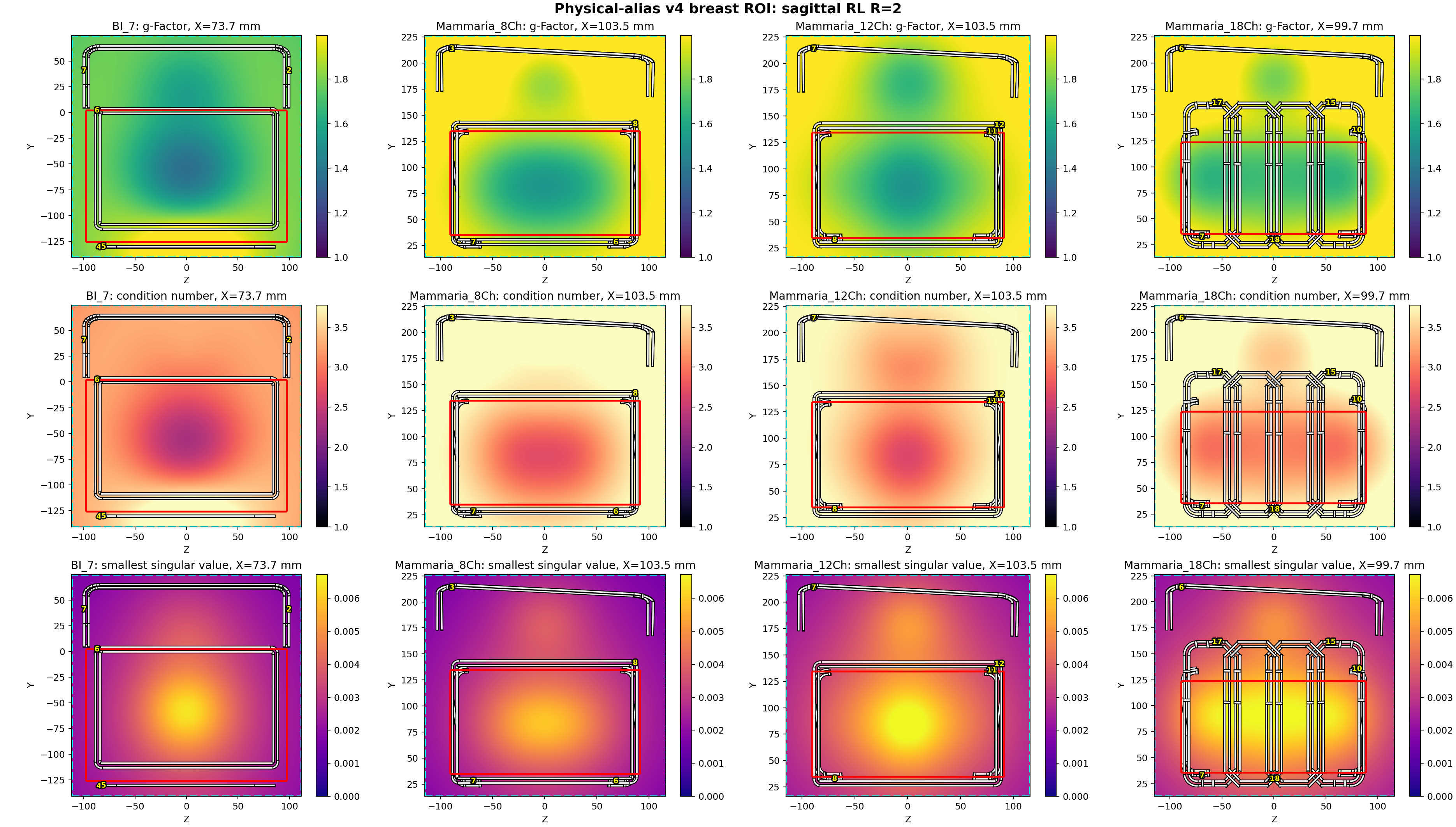

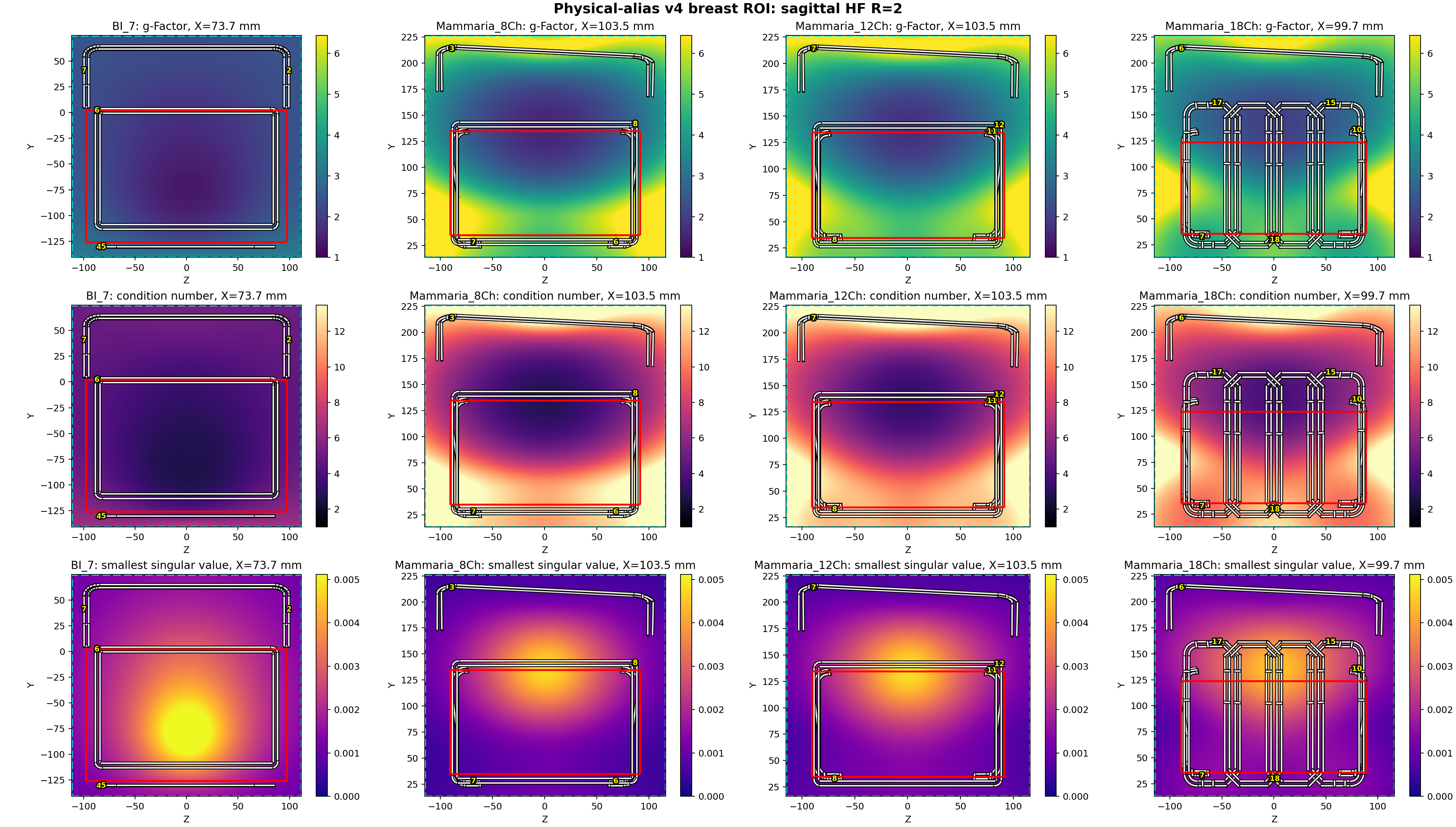

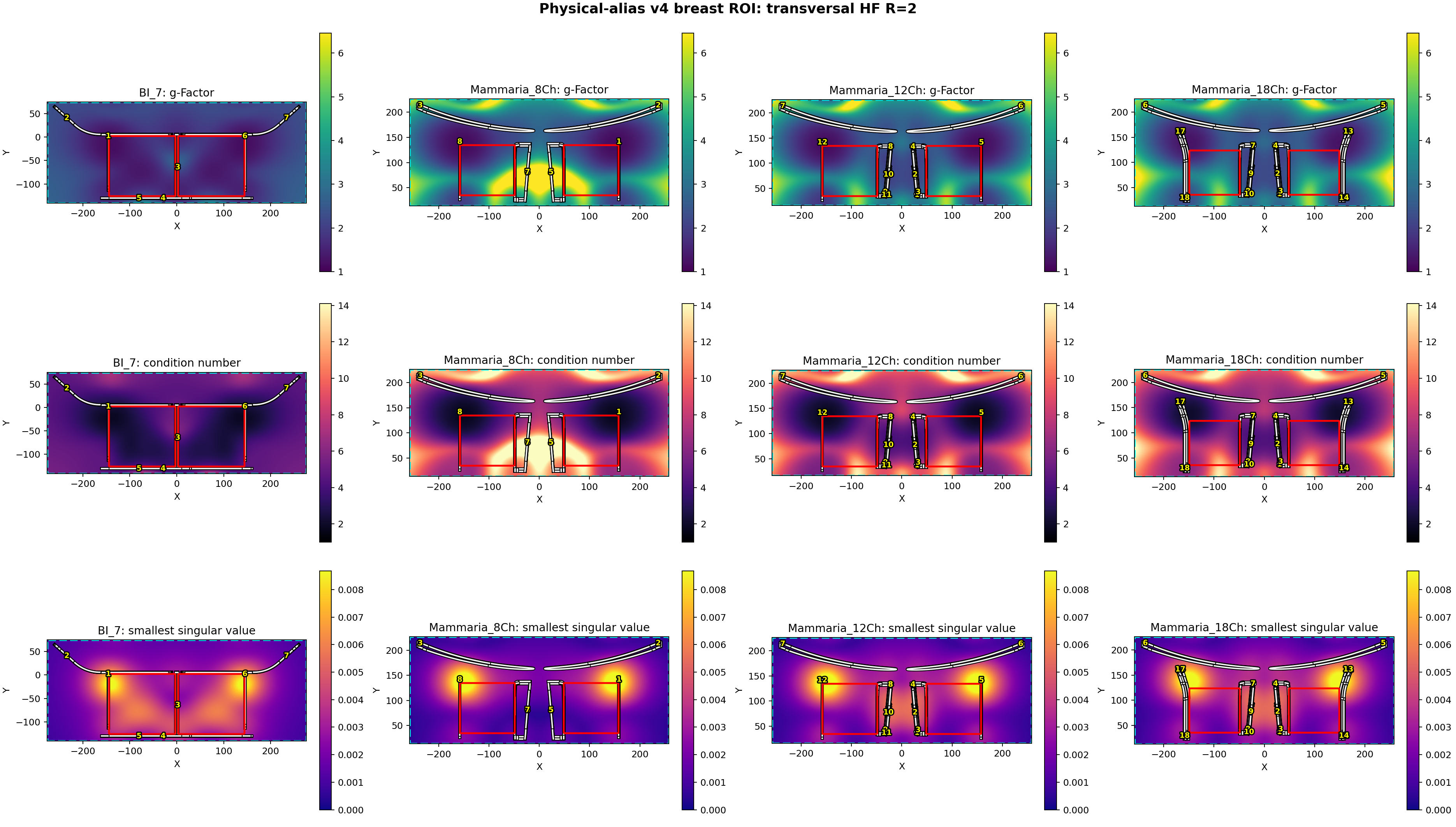

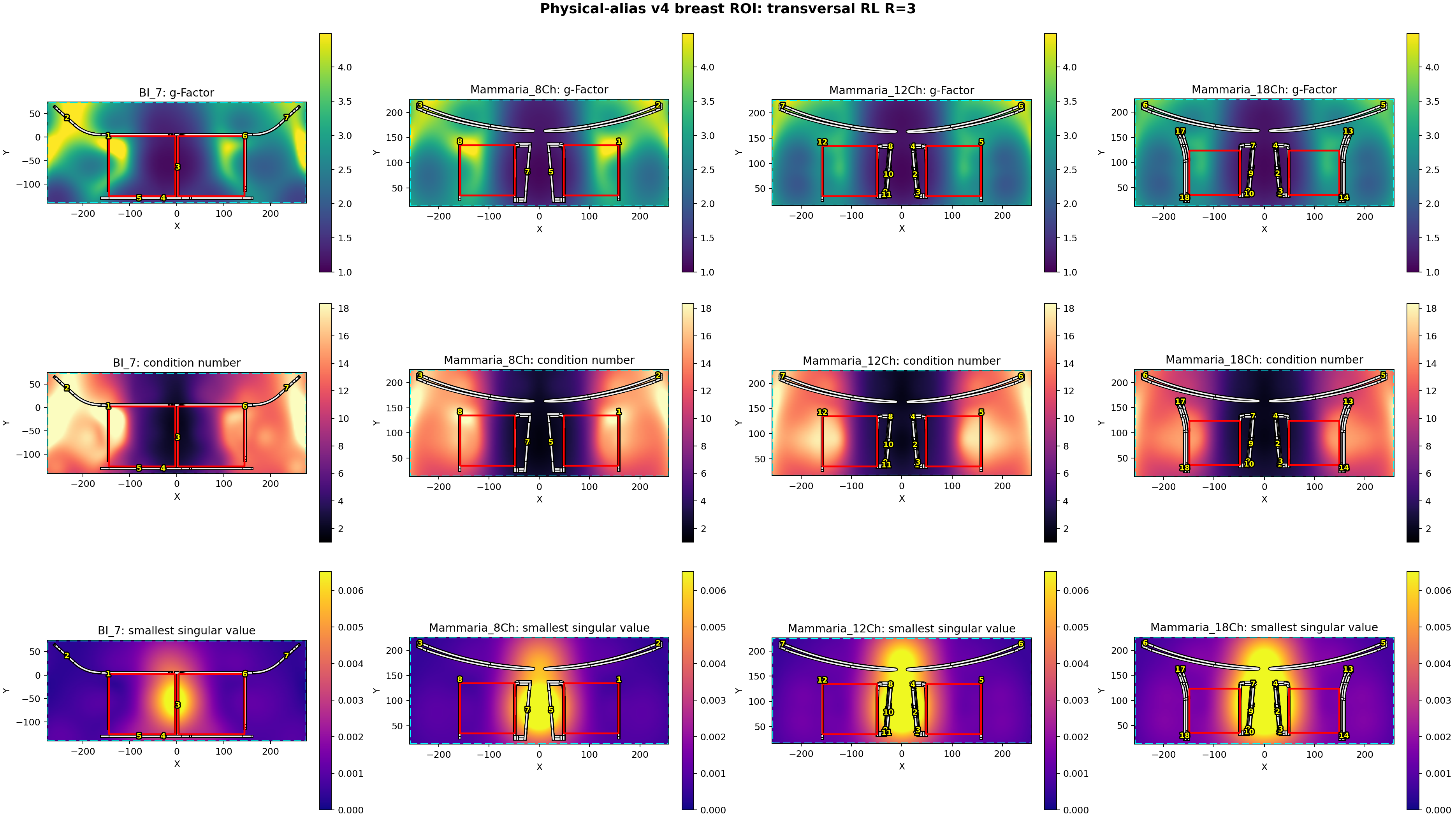

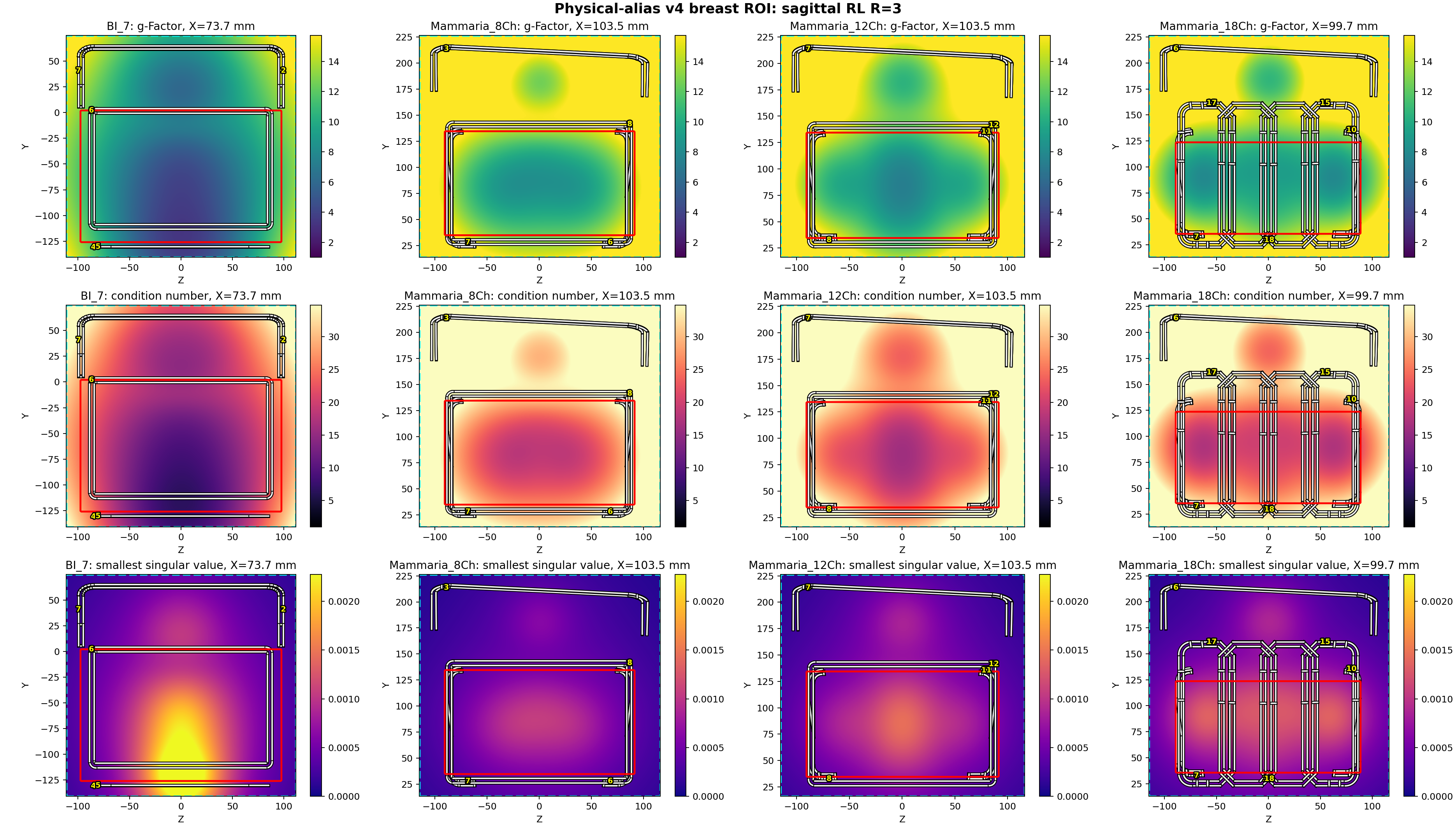

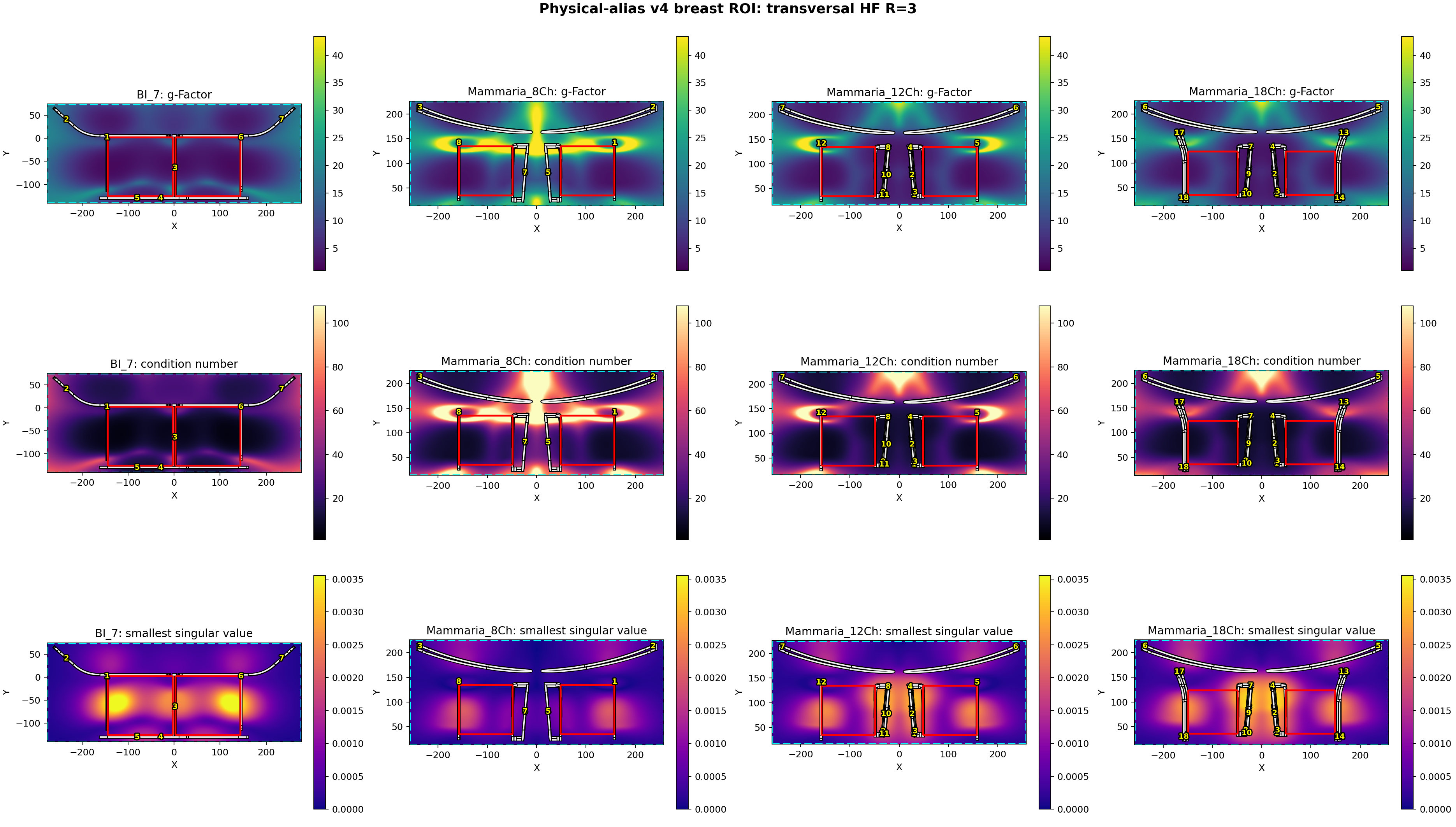

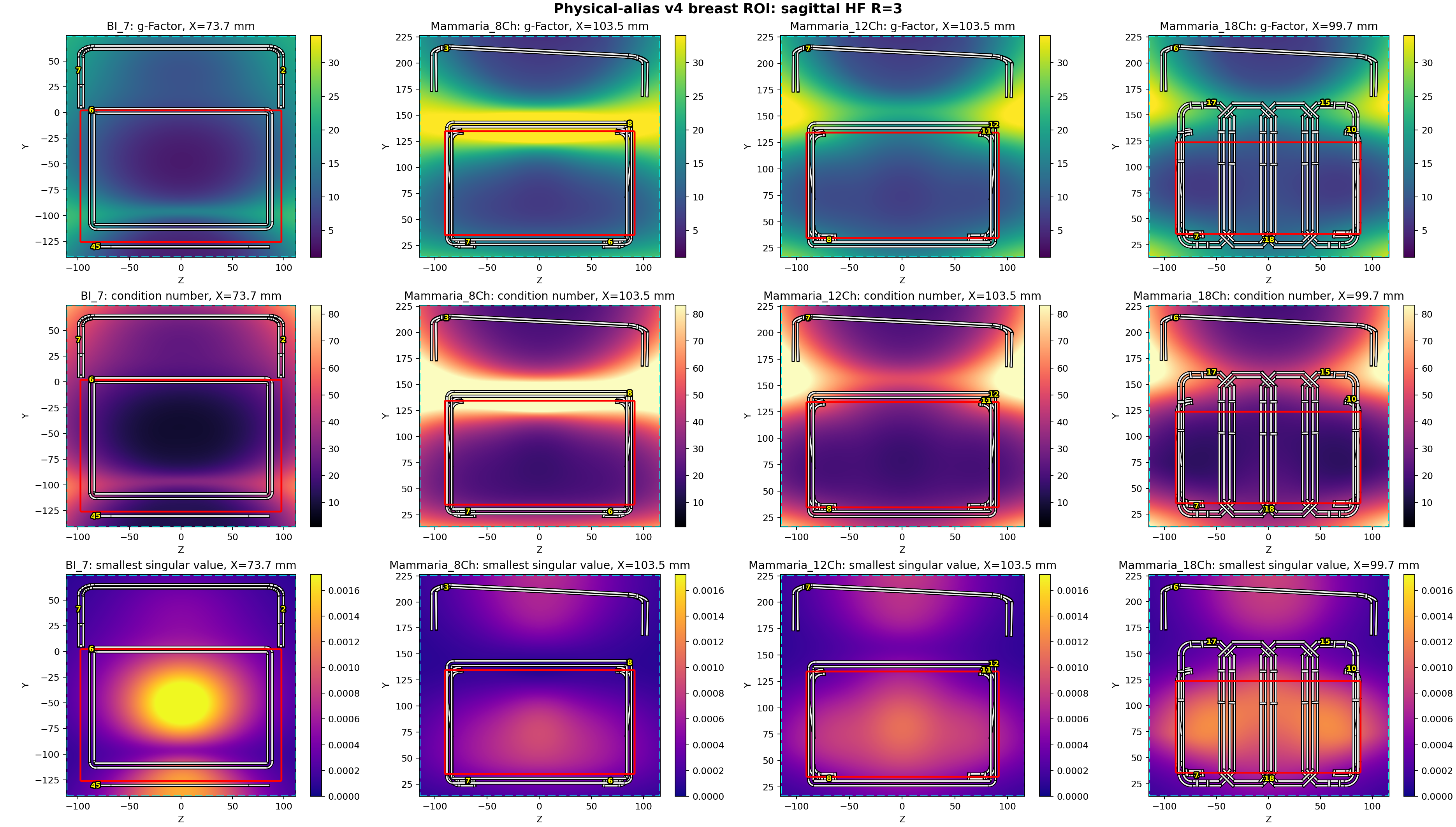

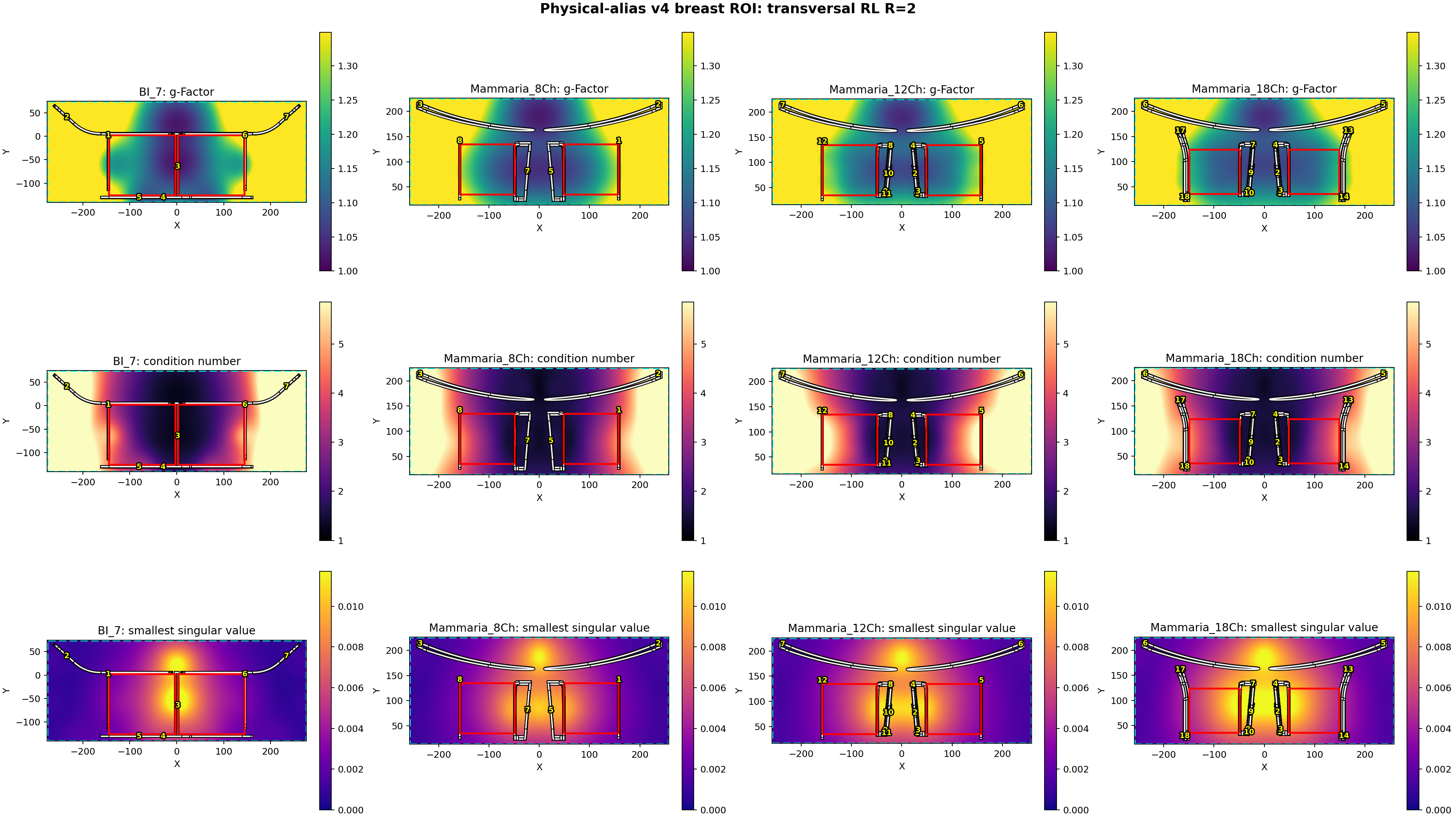

Condition Maps

ROI Summary

Coil	Condition	Direction	R	ROI pixels	ROI rule	g p95	cond p95
BI_7	sagittal_hf_r2	HF	2	13300	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	2.565	4.998
BI_7	sagittal_hf_r3	HF	3	13300	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	18.292	40.918
BI_7	sagittal_rl_r2	RL	2	13300	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.985	3.714
BI_7	sagittal_rl_r3	RL	3	13300	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	11.568	24.998
BI_7	transversal_hf_r2	HF	2	8740	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	2.200	5.044
BI_7	transversal_hf_r3	HF	3	8740	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	12.875	32.045
BI_7	transversal_rl_r2	RL	2	8740	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.335	4.422
BI_7	transversal_rl_r3	RL	3	8740	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	4.157	17.701
Mammaria_8Ch	sagittal_hf_r2	HF	2	9450	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	6.622	14.052
Mammaria_8Ch	sagittal_hf_r3	HF	3	9450	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	37.586	96.197
Mammaria_8Ch	sagittal_rl_r2	RL	2	9450	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.968	3.726
Mammaria_8Ch	sagittal_rl_r3	RL	3	9450	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	15.471	34.343
Mammaria_8Ch	transversal_hf_r2	HF	2	5700	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	6.878	14.934
Mammaria_8Ch	transversal_hf_r3	HF	3	5700	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	50.719	136.985
Mammaria_8Ch	transversal_rl_r2	RL	2	5700	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.324	4.393
Mammaria_8Ch	transversal_rl_r3	RL	3	5700	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	4.403	17.147
Mammaria_12Ch	sagittal_hf_r2	HF	2	9576	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	6.033	12.508
Mammaria_12Ch	sagittal_hf_r3	HF	3	9576	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	19.581	41.596
Mammaria_12Ch	sagittal_rl_r2	RL	2	9576	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.941	3.749
Mammaria_12Ch	sagittal_rl_r3	RL	3	9576	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	15.440	34.315
Mammaria_12Ch	transversal_hf_r2	HF	2	5776	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	4.812	10.441
Mammaria_12Ch	transversal_hf_r3	HF	3	5776	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	18.347	40.144
Mammaria_12Ch	transversal_rl_r2	RL	2	5776	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.308	6.125
Mammaria_12Ch	transversal_rl_r3	RL	3	5776	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	3.306	17.346
Mammaria_18Ch	sagittal_hf_r2	HF	2	8118	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	5.795	11.767
Mammaria_18Ch	sagittal_hf_r3	HF	3	8118	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	13.581	29.608
Mammaria_18Ch	sagittal_rl_r2	RL	2	8118	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.938	3.629
Mammaria_18Ch	sagittal_rl_r3	RL	3	8118	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	14.057	30.361
Mammaria_18Ch	transversal_hf_r2	HF	2	4620	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	4.952	10.800
Mammaria_18Ch	transversal_hf_r3	HF	3	4620	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	11.221	26.595
Mammaria_18Ch	transversal_rl_r2	RL	2	4620	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	1.227	4.451
Mammaria_18Ch	transversal_rl_r3	RL	3	4620	geometry_derived_breast_roi_between_medial_lateral_hf_elements_not_anatomy	3.262	14.389
