PPA Biot-Savart v3 Visual Review Candidate
Source candidate: data/output/tool_checks/biot_savart_thinwire_v3_ordered_wires_candidate_20260506_115817
Existing v3 NPZ maps visually reviewable?
yes
High-resolution recompute required?
no
Suggested max-grid if later required
96 if a later fine-boundary review requires recompute; not required for this native-grid visual-review candidate
Native grid disclosure
Every figure title states the native saved grid. Images use nearest-neighbor display; no smoothing is applied.
g-like scale
local_g_map and pmr_noise_amp_map use 1 to 5; values above 5 are clipped and marked with a magenta boundary when present.
alias correlation scale
alias_col_corr_map uses 0 to 1.
Contour overlays
full_valid, inner60, central_band, deep_band, and alias_valid_only are drawn where non-empty.
Ordered-wire overlay
Ordered-wire geometry was projected onto every review panel.
Sagittal H-F R=2
Compact numeric table; statistics are within valid_mask on the native saved grid.
| component_convention | metric | bi7_p50 | bi7_p90 | bi7_p95 | bi7_area_fraction_gt_1p5 | mammaria18ch_p50 | mammaria18ch_p90 | mammaria18ch_p95 | mammaria18ch_area_fraction_gt_1p5 |
|---|
| b0_y_transverse_xz | local_g_map | 1.531 | 4.636 | 5.017 | 0.522 | 1.172 | 1.271 | 1.308 | 0.010 |
| b0_y_transverse_xz | pmr_noise_amp_map | 1.587 | 4.683 | 5.242 | 0.527 | 1.160 | 1.389 | 1.476 | 0.035 |
| b0_y_transverse_xz | alias_col_corr_map | 0.757 | 0.976 | 0.980 | 0.000 | 0.522 | 0.617 | 0.644 | 0.000 |
| b0_z_transverse_xy | local_g_map | 1.060 | 1.086 | 1.095 | 0.000 | 1.479 | 2.030 | 2.205 | 0.464 |
| b0_z_transverse_xy | pmr_noise_amp_map | 1.059 | 1.228 | 1.272 | 0.000 | 1.455 | 2.020 | 2.201 | 0.464 |
| b0_z_transverse_xy | alias_col_corr_map | 0.332 | 0.390 | 0.408 | 0.000 | 0.737 | 0.870 | 0.891 | 0.000 |
b0_y_transverse_xz local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

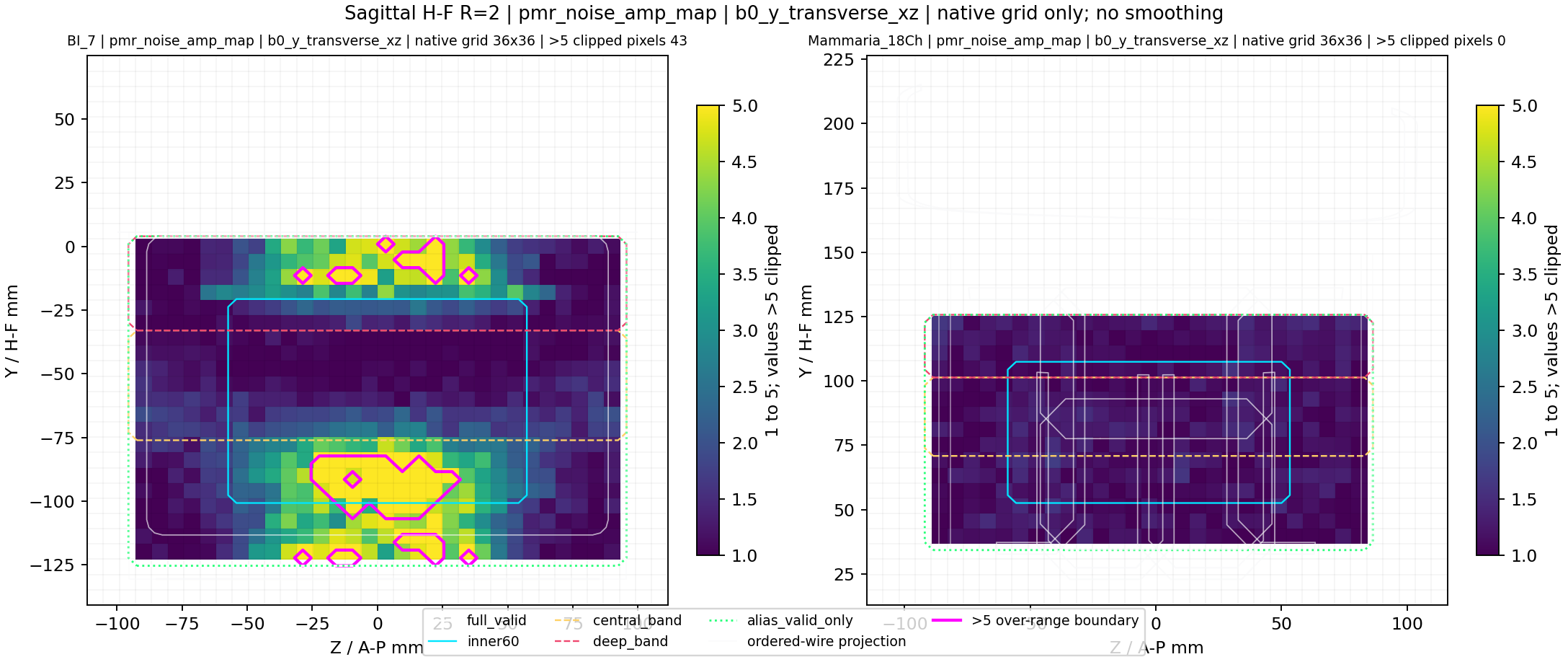

b0_y_transverse_xz pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

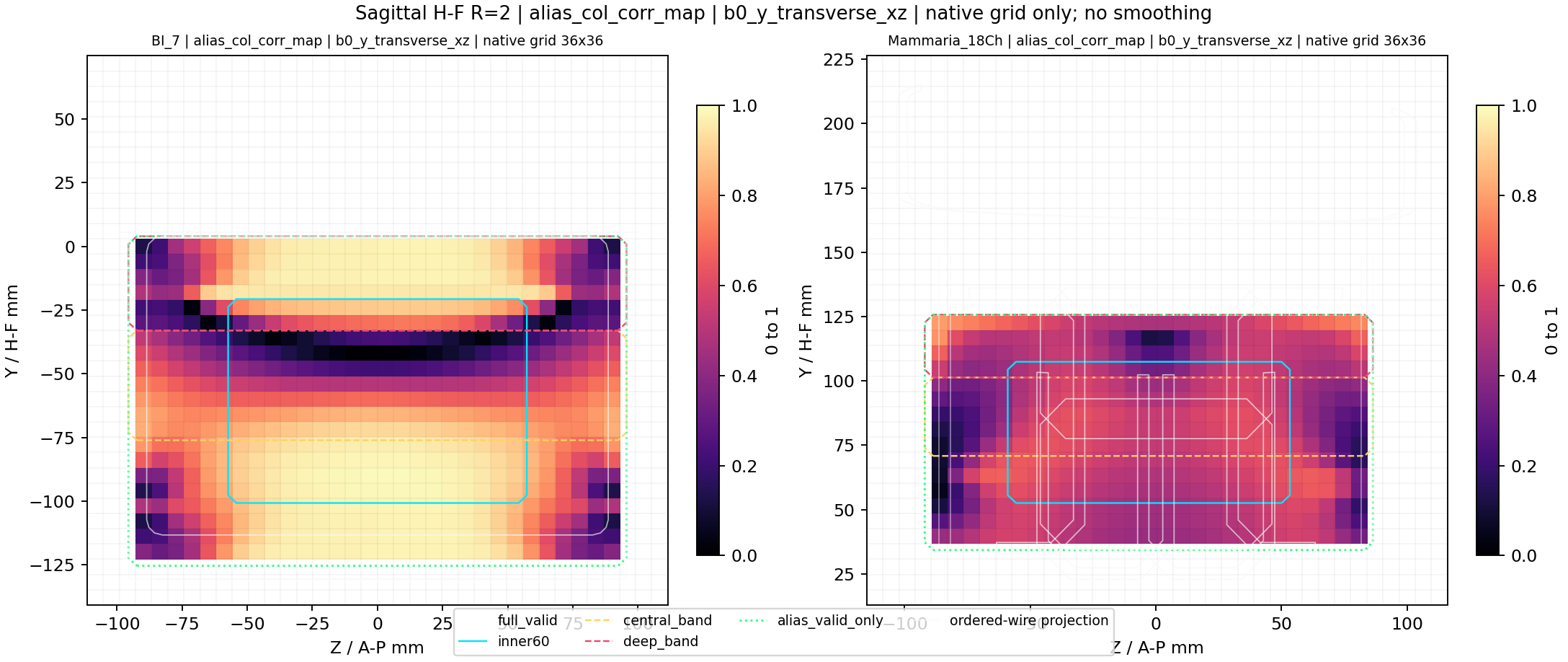

b0_y_transverse_xz alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

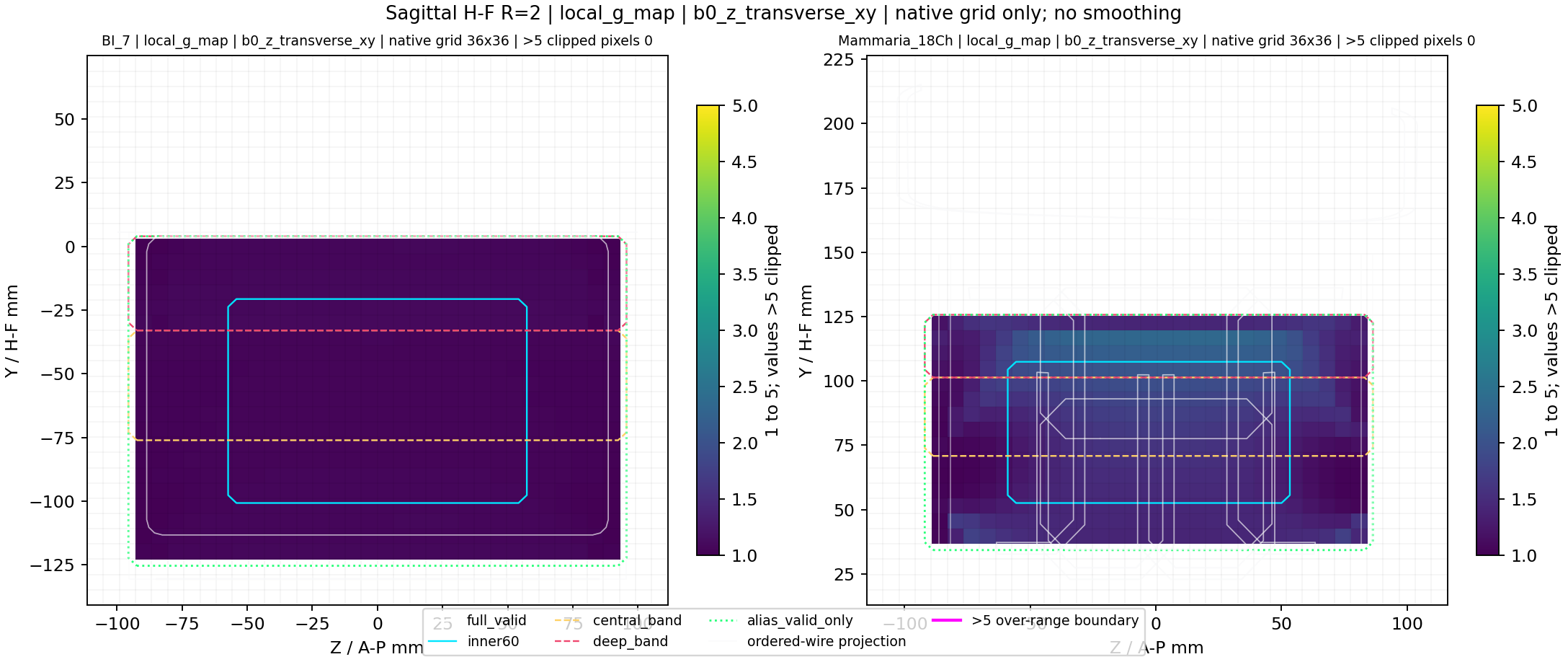

b0_z_transverse_xy local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

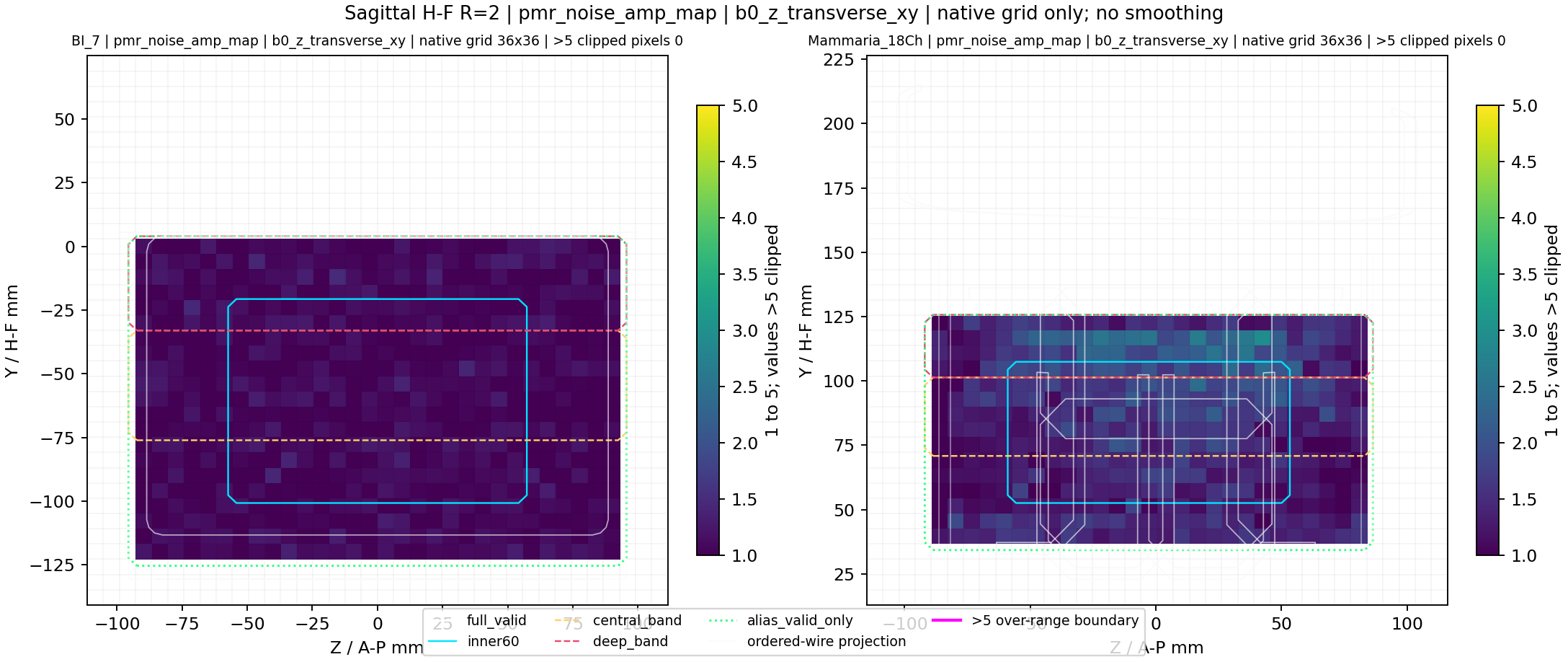

b0_z_transverse_xy pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

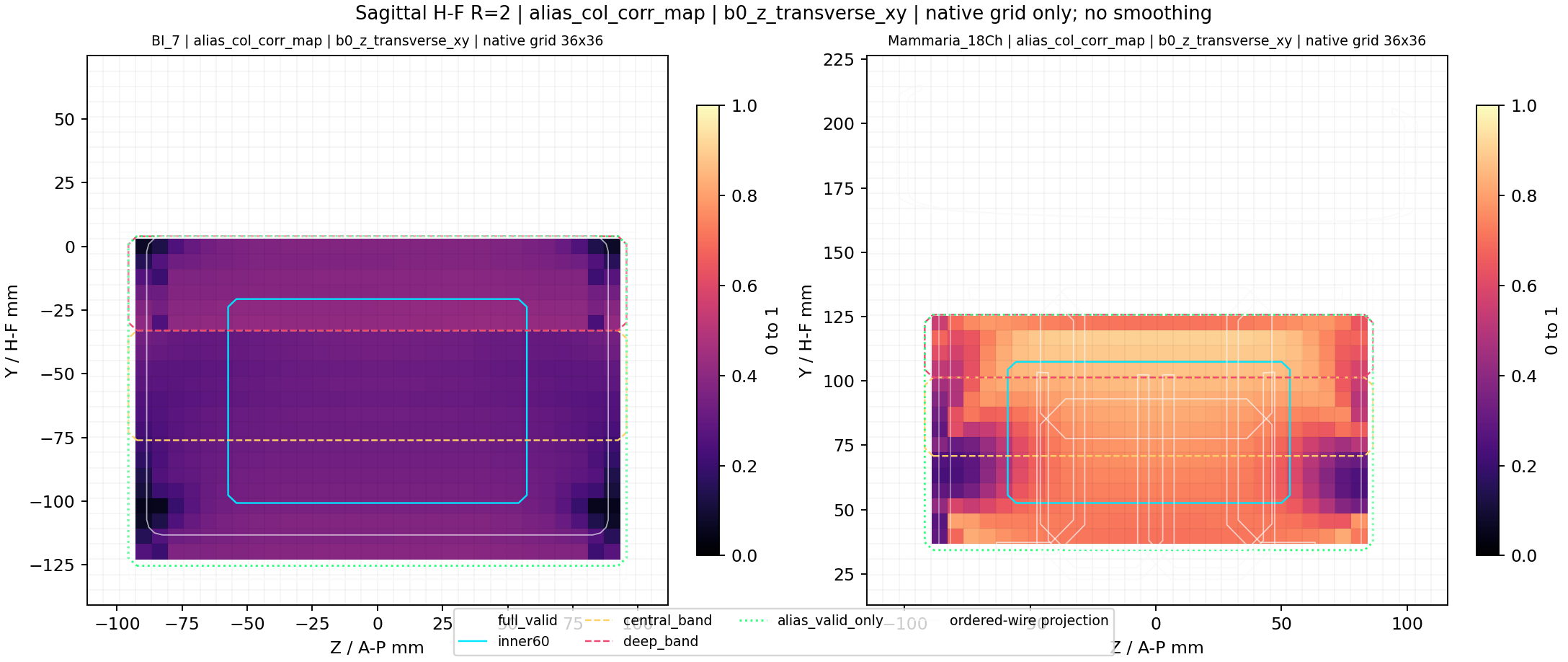

b0_z_transverse_xy alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
Sagittal H-F R=3
Compact numeric table; statistics are within valid_mask on the native saved grid.
| component_convention | metric | bi7_p50 | bi7_p90 | bi7_p95 | bi7_area_fraction_gt_1p5 | mammaria18ch_p50 | mammaria18ch_p90 | mammaria18ch_p95 | mammaria18ch_area_fraction_gt_1p5 |
|---|
| b0_y_transverse_xz | local_g_map | 3.928 | 8.395 | 9.853 | 0.883 | 1.805 | 4.420 | 4.577 | 0.815 |
| b0_y_transverse_xz | pmr_noise_amp_map | 3.614 | 8.494 | 9.870 | 0.862 | 1.800 | 4.133 | 4.635 | 0.760 |
| b0_y_transverse_xz | alias_col_corr_map | 0.953 | 0.988 | 0.992 | 0.000 | 0.791 | 0.859 | 0.877 | 0.000 |
| b0_z_transverse_xy | local_g_map | 1.602 | 2.022 | 2.106 | 0.695 | 1.893 | 2.795 | 3.010 | 1.000 |
| b0_z_transverse_xy | pmr_noise_amp_map | 1.618 | 2.108 | 2.294 | 0.646 | 1.926 | 2.761 | 3.057 | 0.919 |
| b0_z_transverse_xy | alias_col_corr_map | 0.642 | 0.674 | 0.682 | 0.000 | 0.872 | 0.953 | 0.962 | 0.000 |

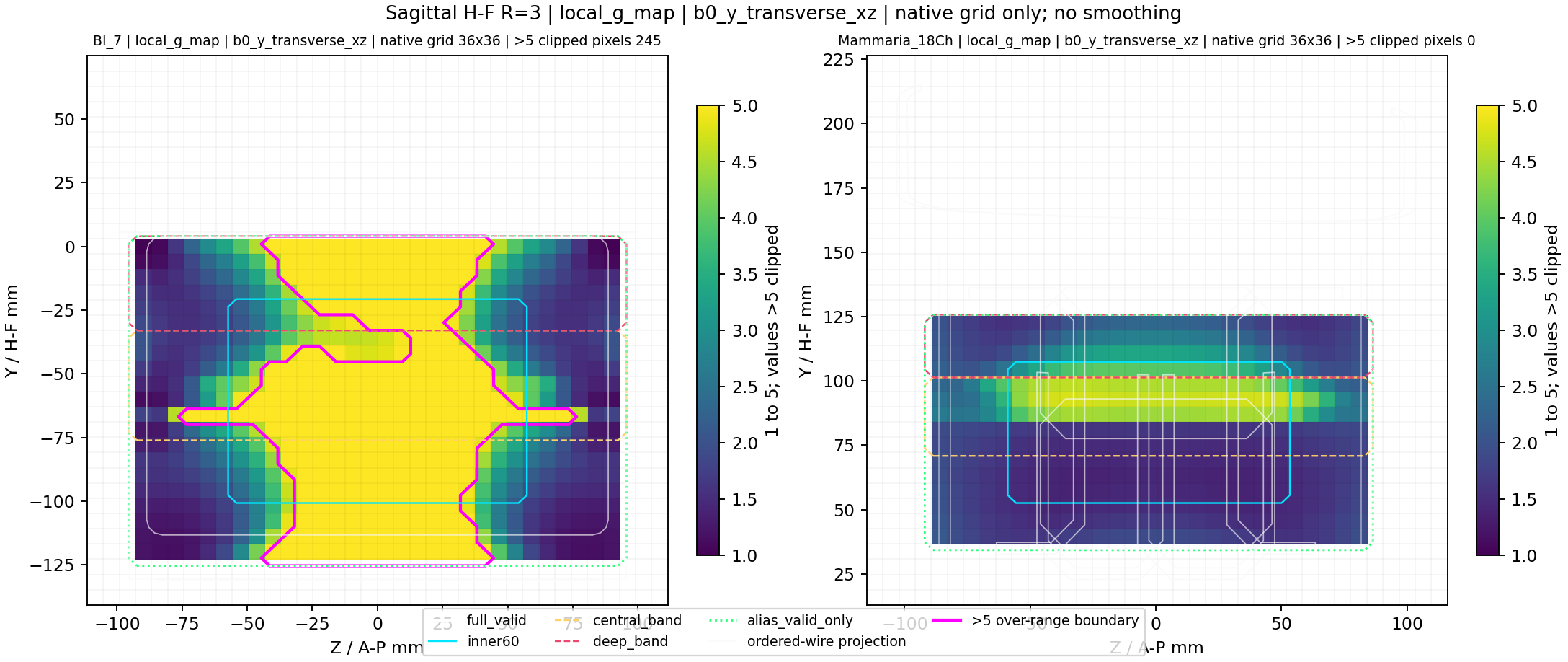

b0_y_transverse_xz local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

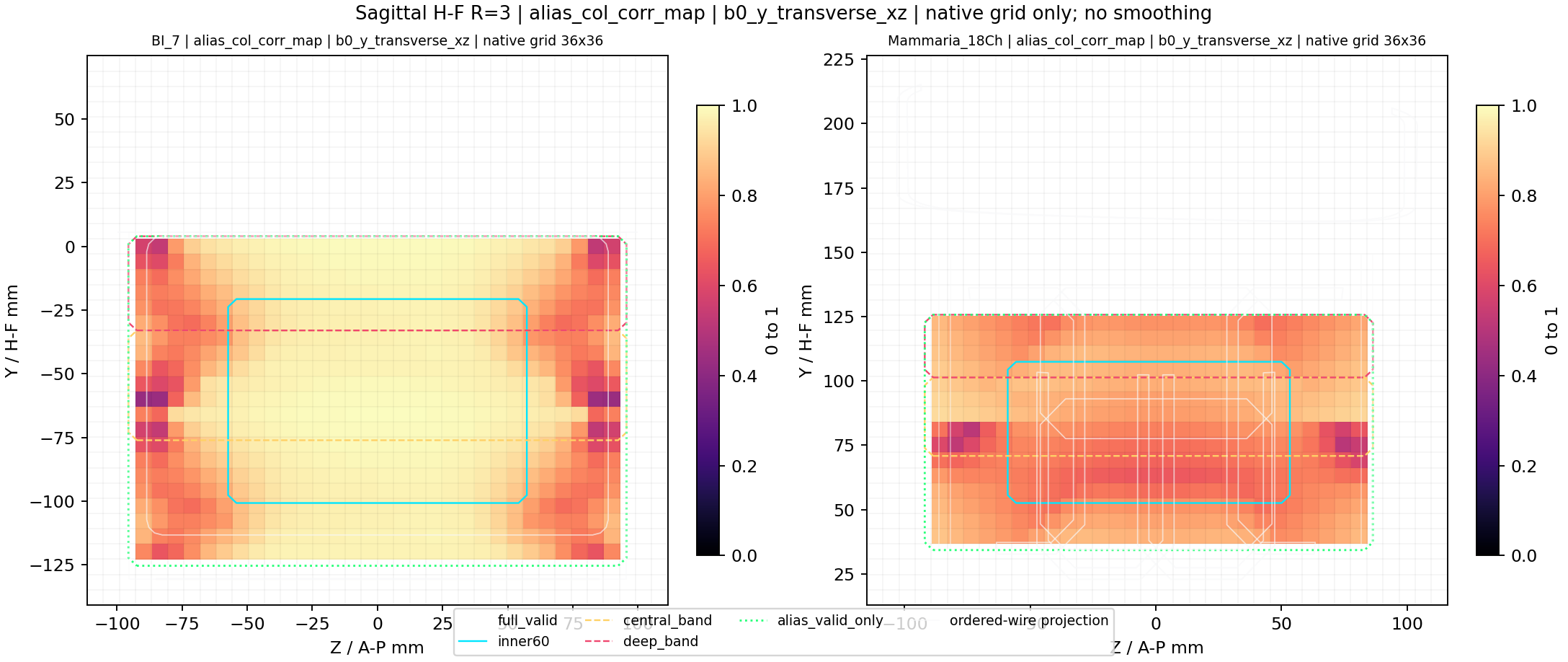

b0_y_transverse_xz alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

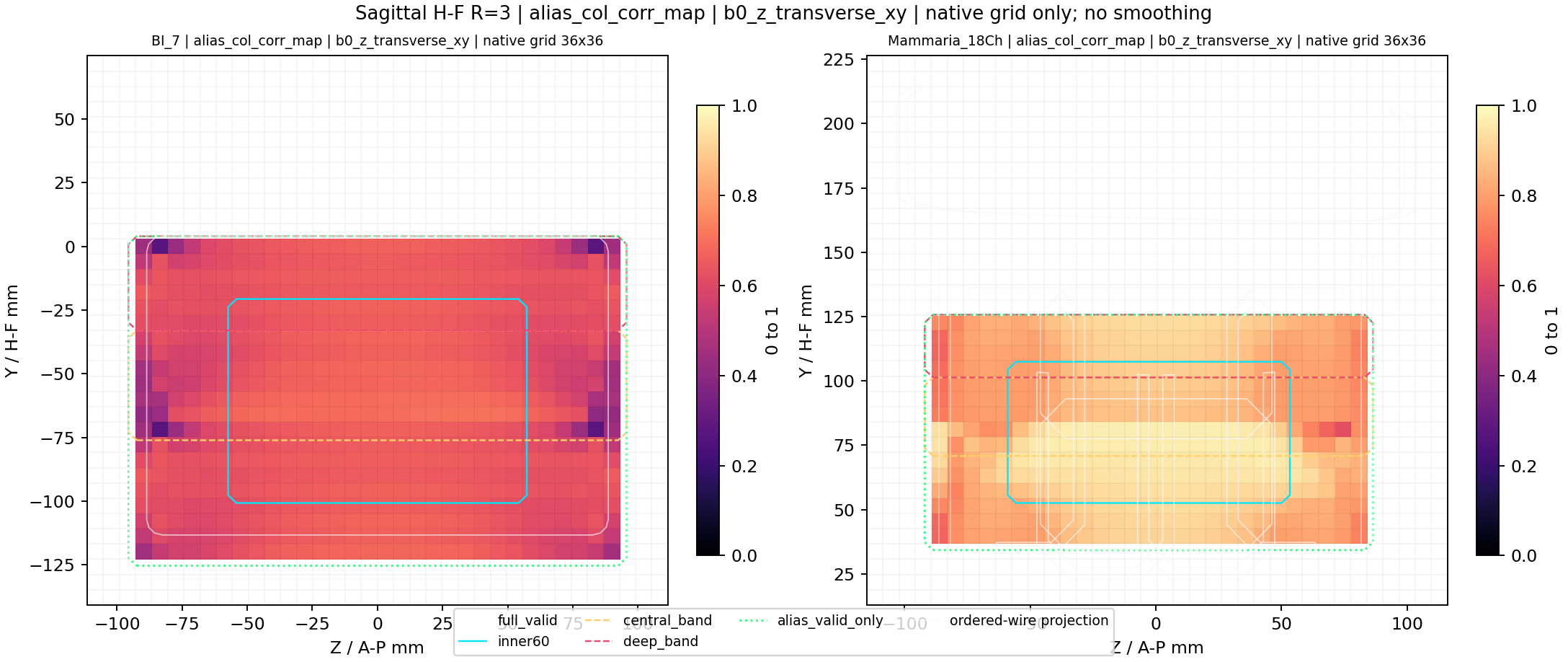

b0_z_transverse_xy alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

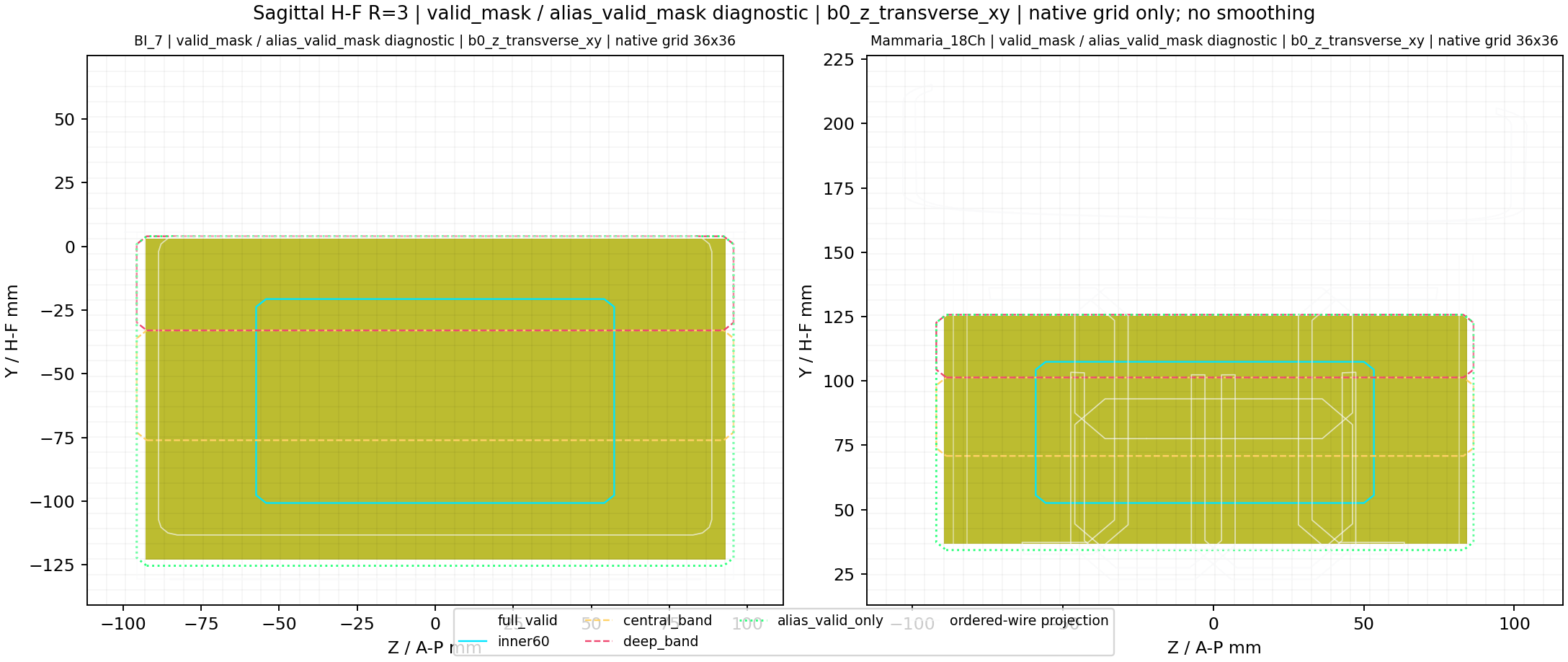

b0_z_transverse_xy valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
Transversal R-L R=2
Compact numeric table; statistics are within valid_mask on the native saved grid.
| component_convention | metric | bi7_p50 | bi7_p90 | bi7_p95 | bi7_area_fraction_gt_1p5 | mammaria18ch_p50 | mammaria18ch_p90 | mammaria18ch_p95 | mammaria18ch_area_fraction_gt_1p5 |
|---|
| b0_y_transverse_xz | local_g_map | 1.002 | 1.021 | 1.026 | 0.000 | 1.009 | 1.131 | 1.225 | 0.000 |
| b0_y_transverse_xz | pmr_noise_amp_map | 1.016 | 1.173 | 1.224 | 0.003 | 1.017 | 1.209 | 1.278 | 0.005 |
| b0_y_transverse_xz | alias_col_corr_map | 0.066 | 0.204 | 0.222 | 0.000 | 0.137 | 0.467 | 0.578 | 0.000 |
| b0_z_transverse_xy | local_g_map | 1.002 | 1.015 | 1.019 | 0.000 | 1.007 | 1.039 | 1.051 | 0.000 |
| b0_z_transverse_xy | pmr_noise_amp_map | 0.999 | 1.158 | 1.208 | 0.000 | 0.990 | 1.153 | 1.203 | 0.000 |
| b0_z_transverse_xy | alias_col_corr_map | 0.062 | 0.168 | 0.192 | 0.000 | 0.120 | 0.272 | 0.308 | 0.000 |
b0_y_transverse_xz local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

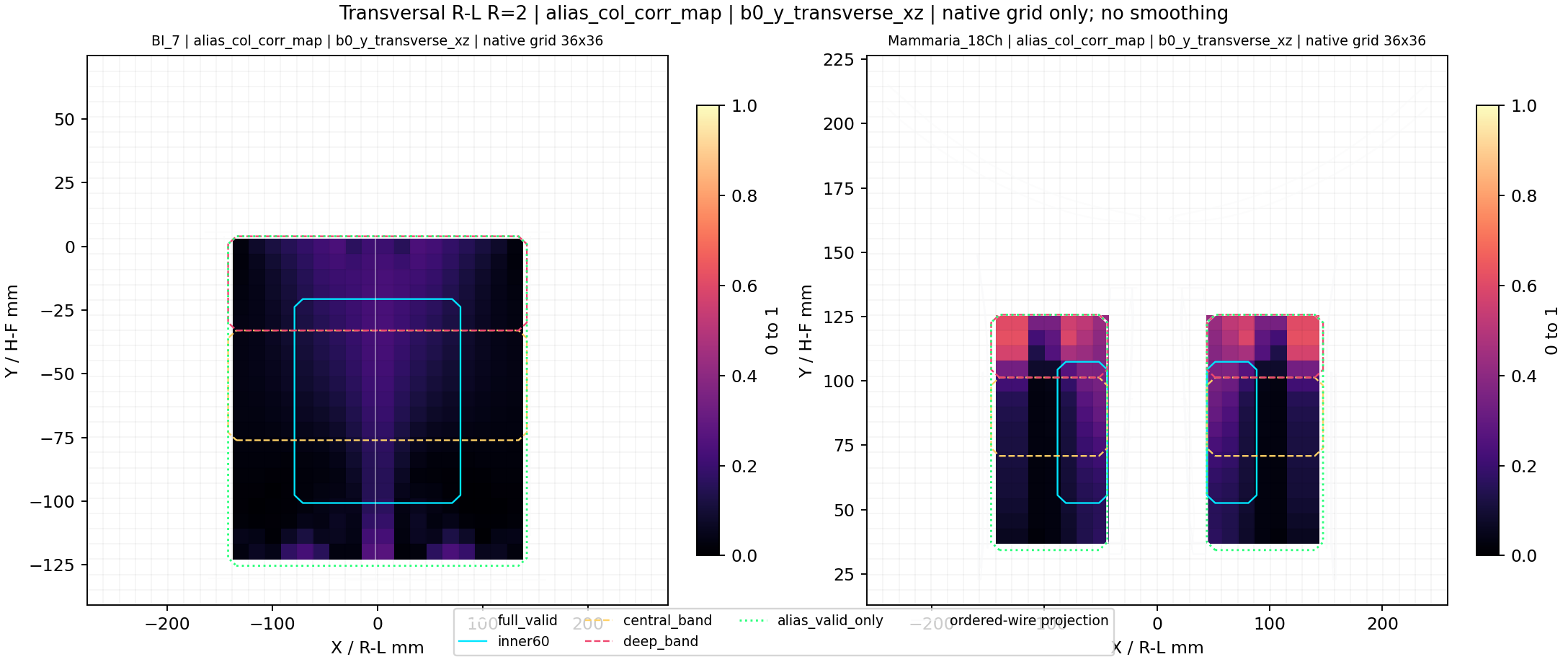

b0_y_transverse_xz alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

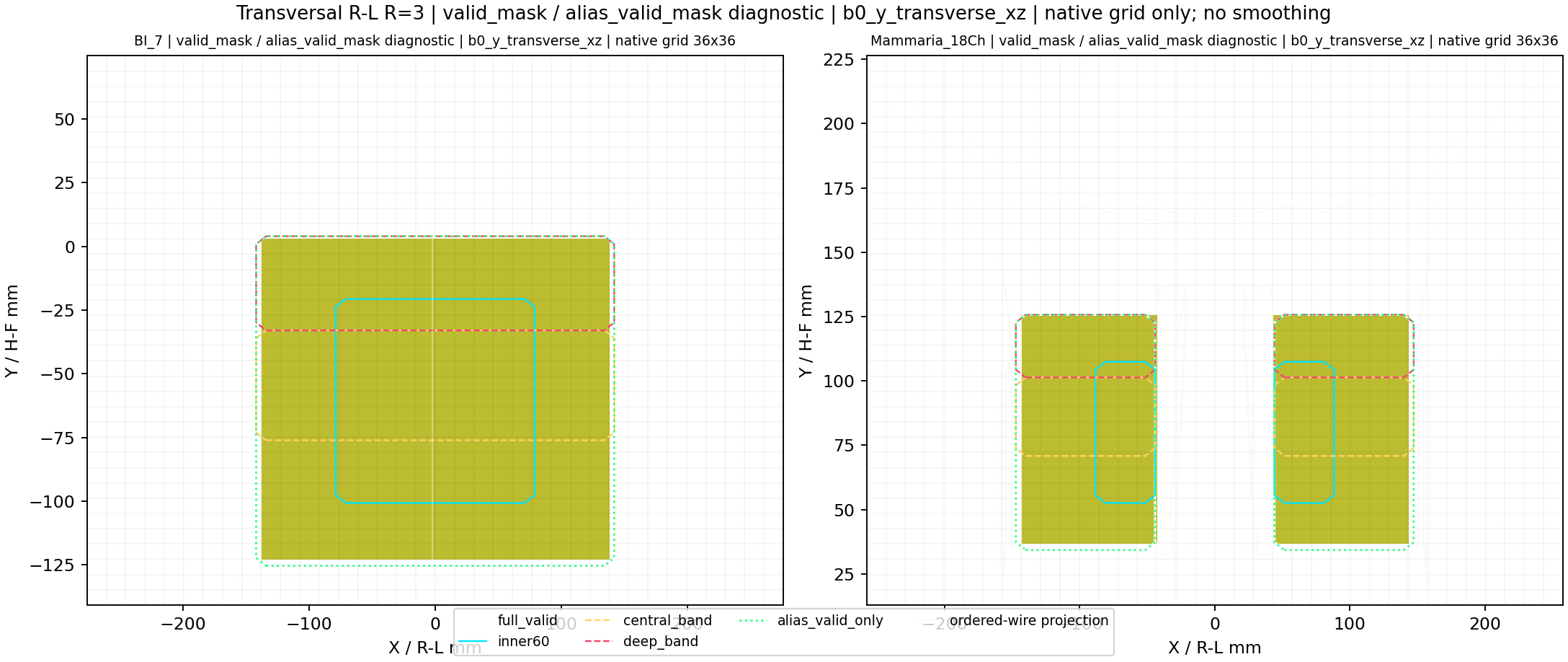

b0_y_transverse_xz valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

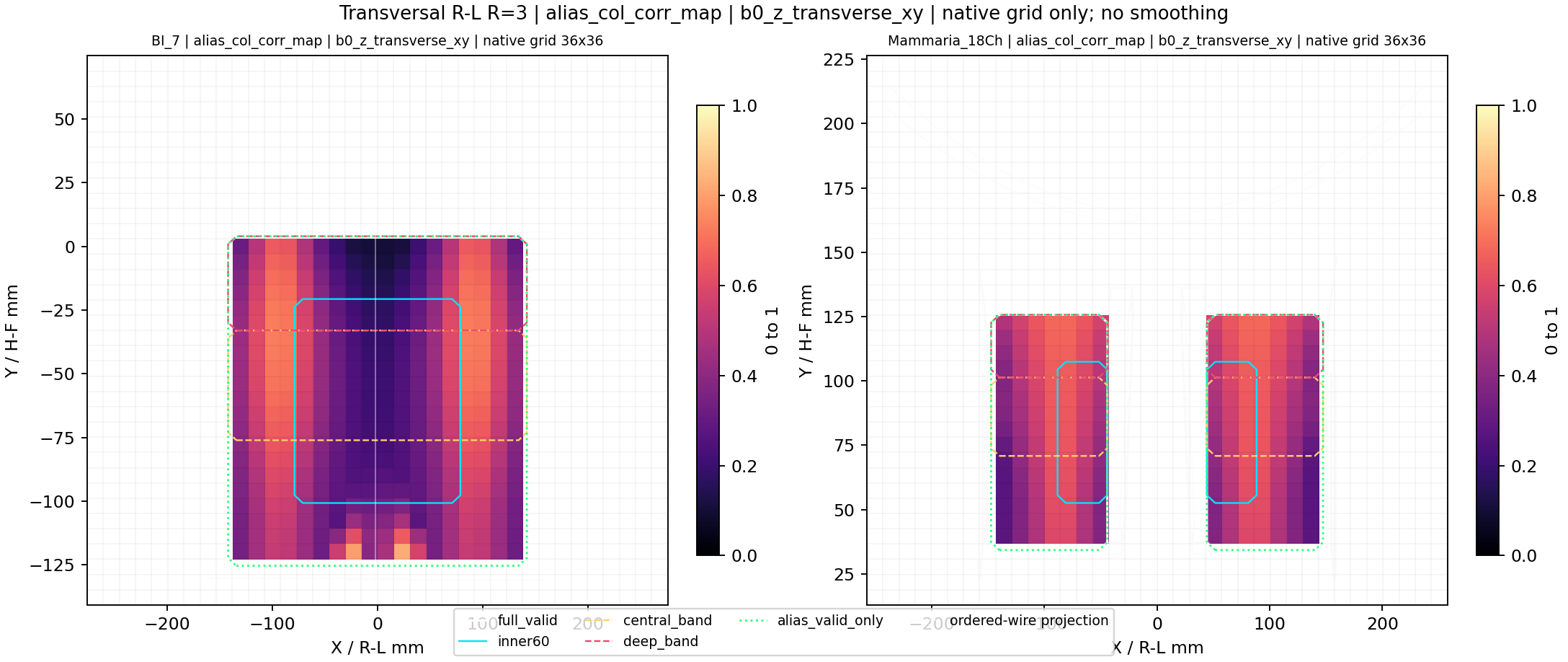

b0_z_transverse_xy alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

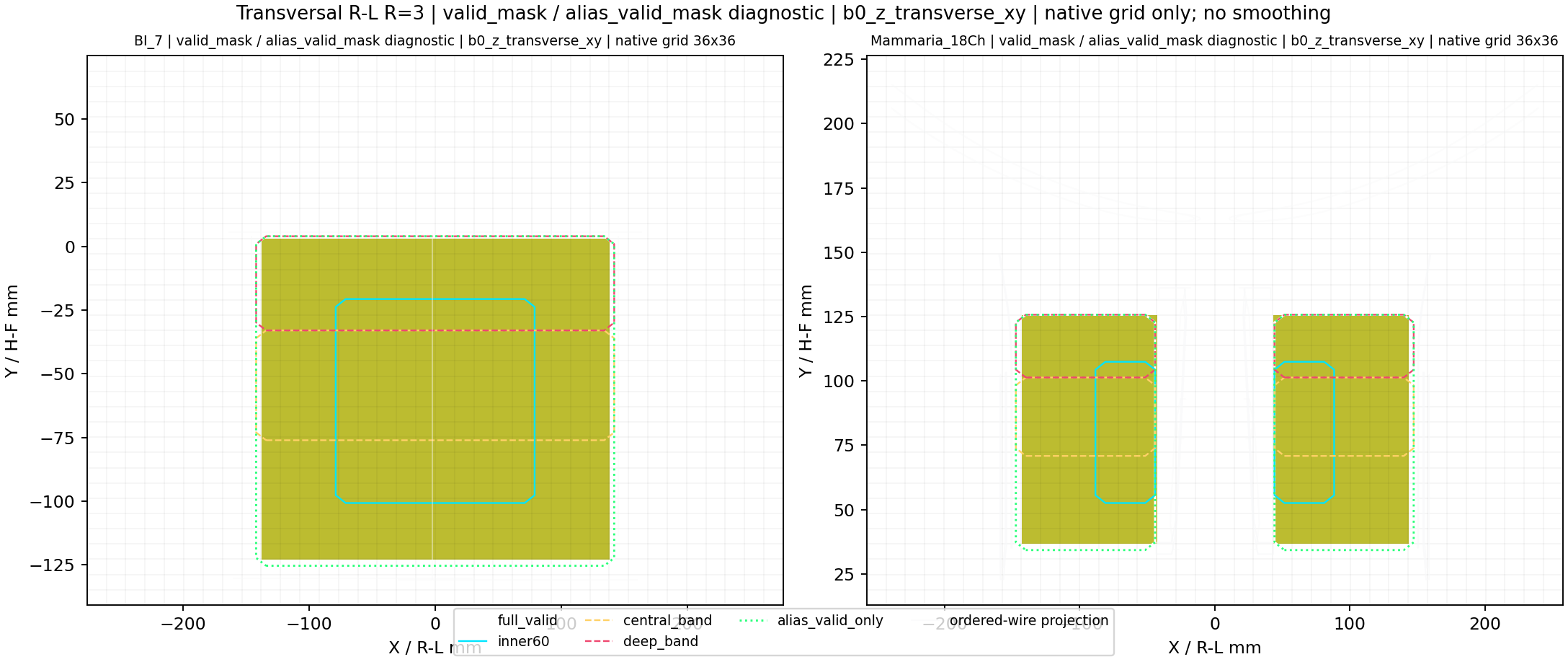

b0_z_transverse_xy valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
Transversal R-L R=3
Compact numeric table; statistics are within valid_mask on the native saved grid.
| component_convention | metric | bi7_p50 | bi7_p90 | bi7_p95 | bi7_area_fraction_gt_1p5 | mammaria18ch_p50 | mammaria18ch_p90 | mammaria18ch_p95 | mammaria18ch_area_fraction_gt_1p5 |
|---|
| b0_y_transverse_xz | local_g_map | 1.061 | 2.244 | 2.452 | 0.190 | 1.172 | 1.381 | 1.465 | 0.038 |
| b0_y_transverse_xz | pmr_noise_amp_map | 1.110 | 2.052 | 2.435 | 0.193 | 1.166 | 1.434 | 1.520 | 0.067 |
| b0_y_transverse_xz | alias_col_corr_map | 0.552 | 0.902 | 0.909 | 0.000 | 0.573 | 0.713 | 0.739 | 0.000 |
| b0_z_transverse_xy | local_g_map | 1.056 | 1.273 | 1.407 | 0.005 | 1.108 | 1.308 | 1.330 | 0.000 |
| b0_z_transverse_xy | pmr_noise_amp_map | 1.066 | 1.344 | 1.451 | 0.040 | 1.111 | 1.375 | 1.499 | 0.052 |
| b0_z_transverse_xy | alias_col_corr_map | 0.428 | 0.680 | 0.712 | 0.000 | 0.525 | 0.651 | 0.665 | 0.000 |
b0_y_transverse_xz local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.

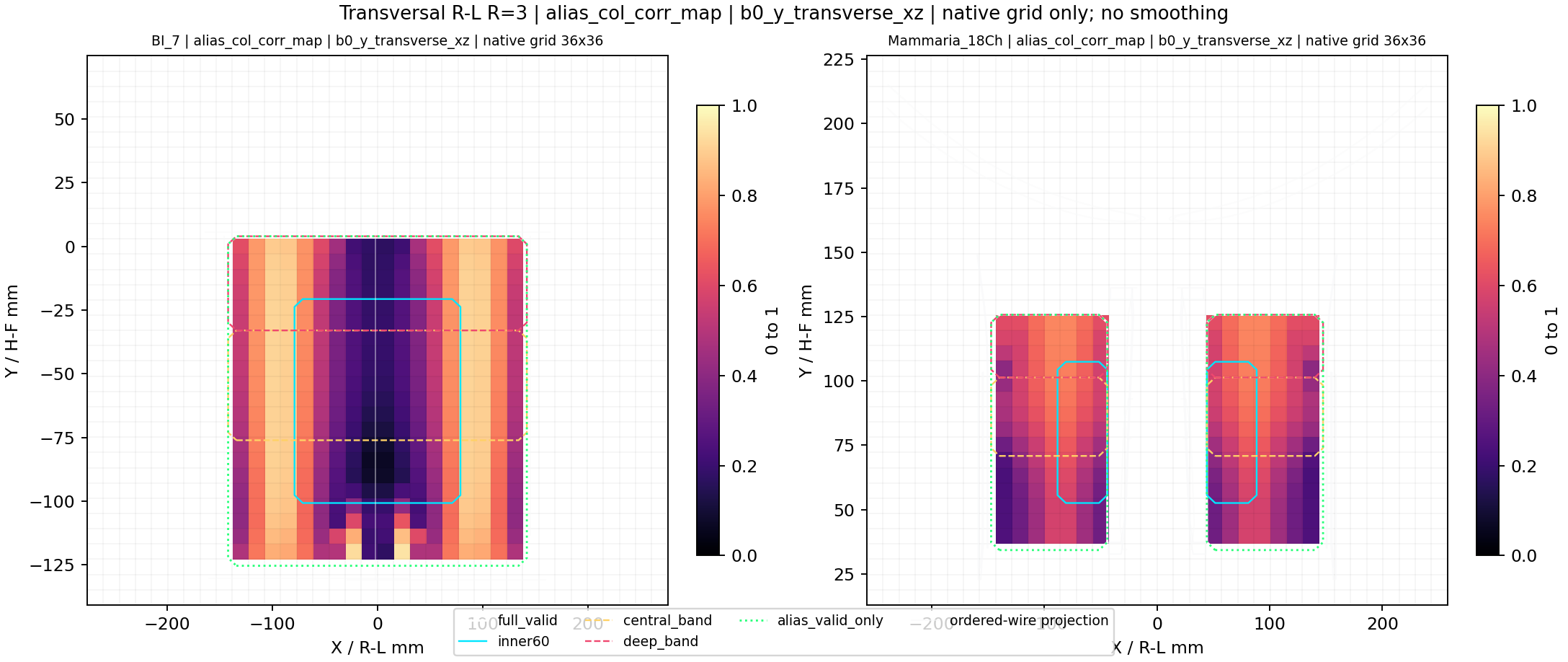

b0_y_transverse_xz alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_y_transverse_xz valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy local_g_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy pmr_noise_amp_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy alias_col_corr_map; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
b0_z_transverse_xy valid_mask / alias_valid_mask diagnostic; native grid shown; BI_7 and Mammaria_18Ch side-by-side.
Scope limits: thin-wire surrogate technical visual review only. No EM simulation, clinical validation, measured-noise, coupling, matching, preamp, or product-ranking claim is made.
No live project, public export, MediaWiki, Cloudflare, stable URL, /var/www, /srv, PPTX template, final ZIP, publication path, original STEP file, or git commit was touched.
