Twin-breast FOV Phase A/B review with all STEP loop projections

Scope: STEP-derived receive surrogate, unloaded ideal-decoupled layout surrogate, Psi=I. Not measured g-factor, not true SNR, not EM-validated, not clinically validated.

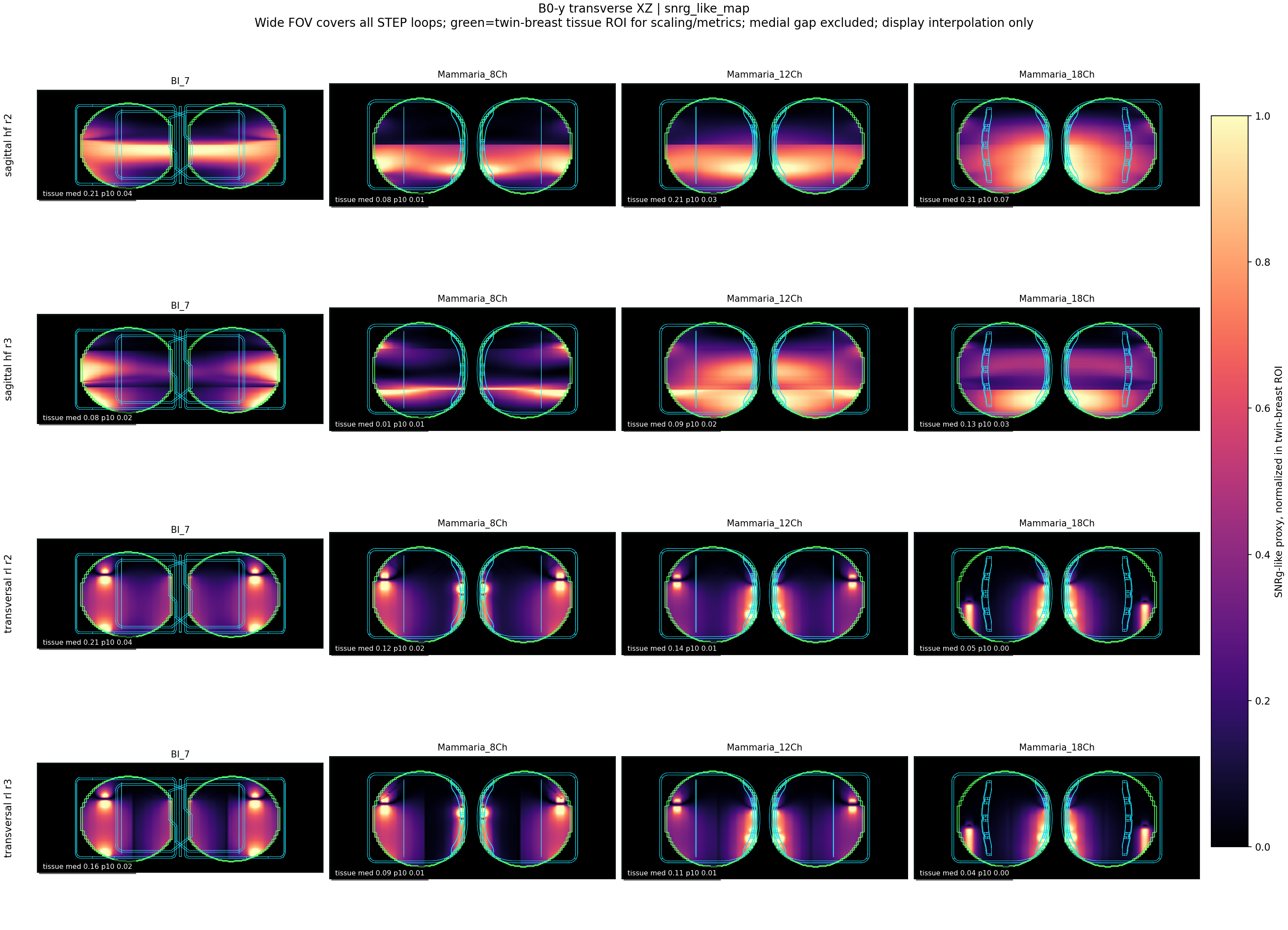

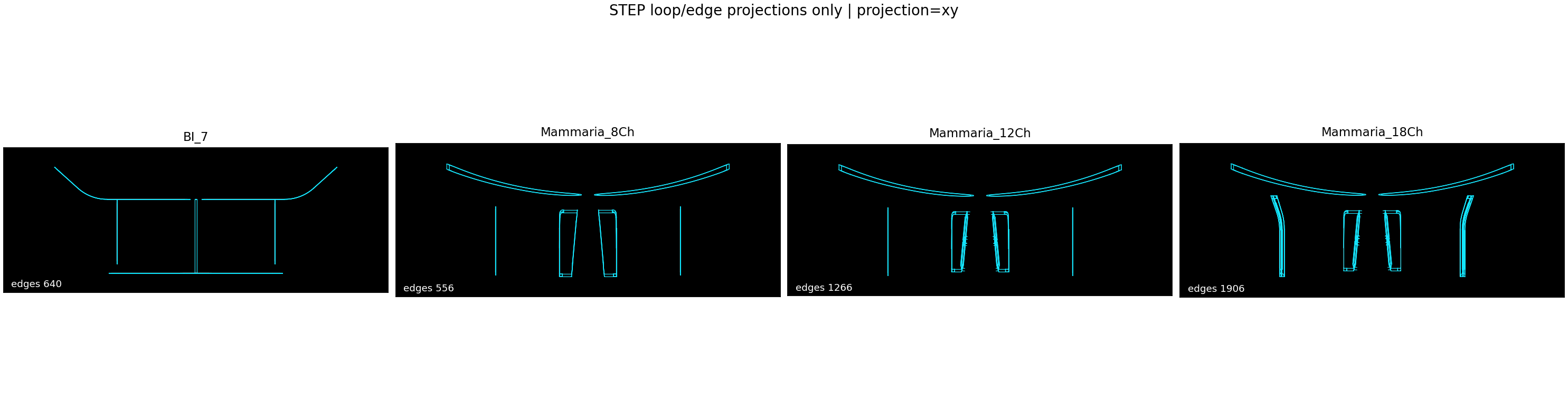

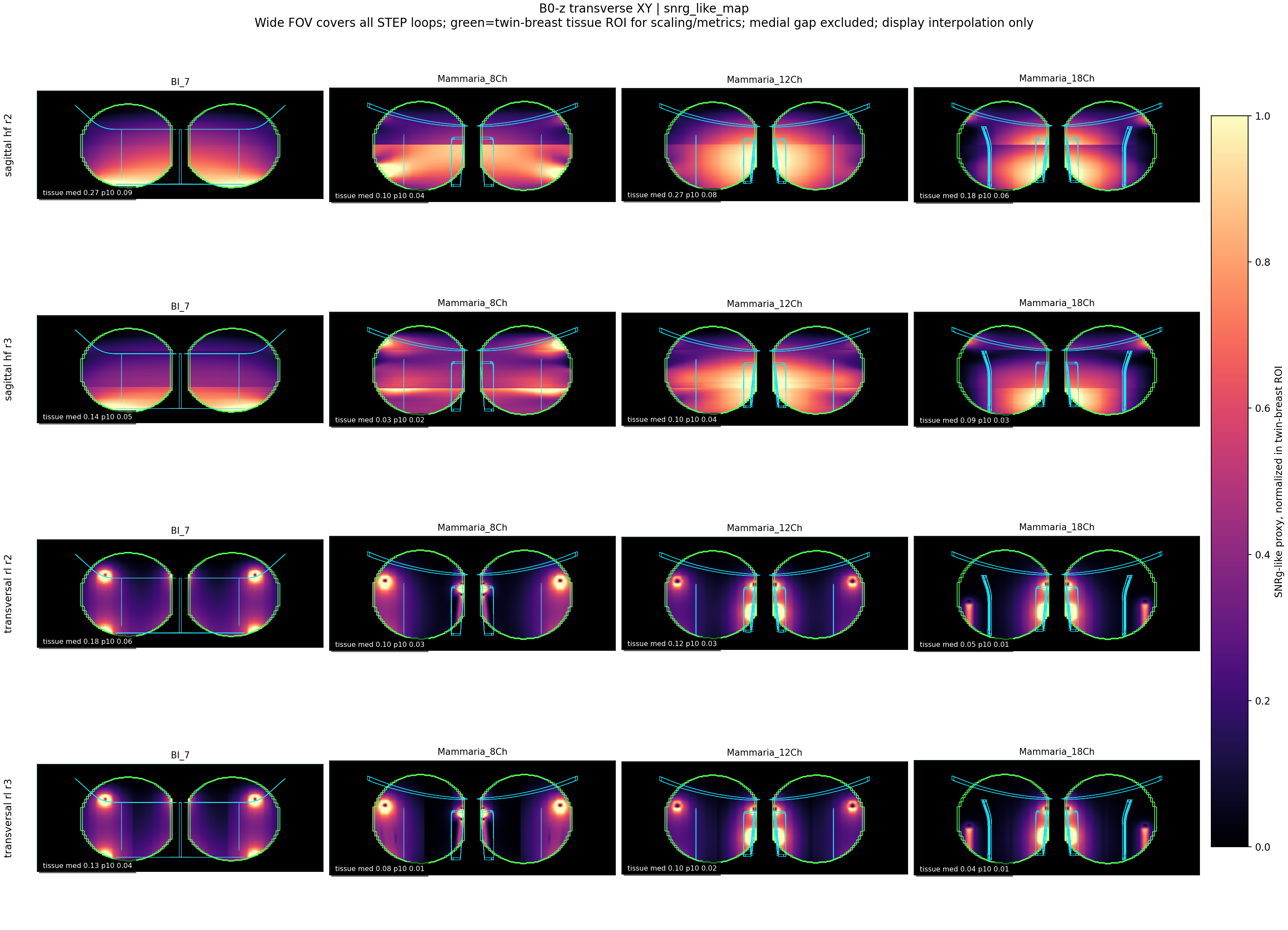

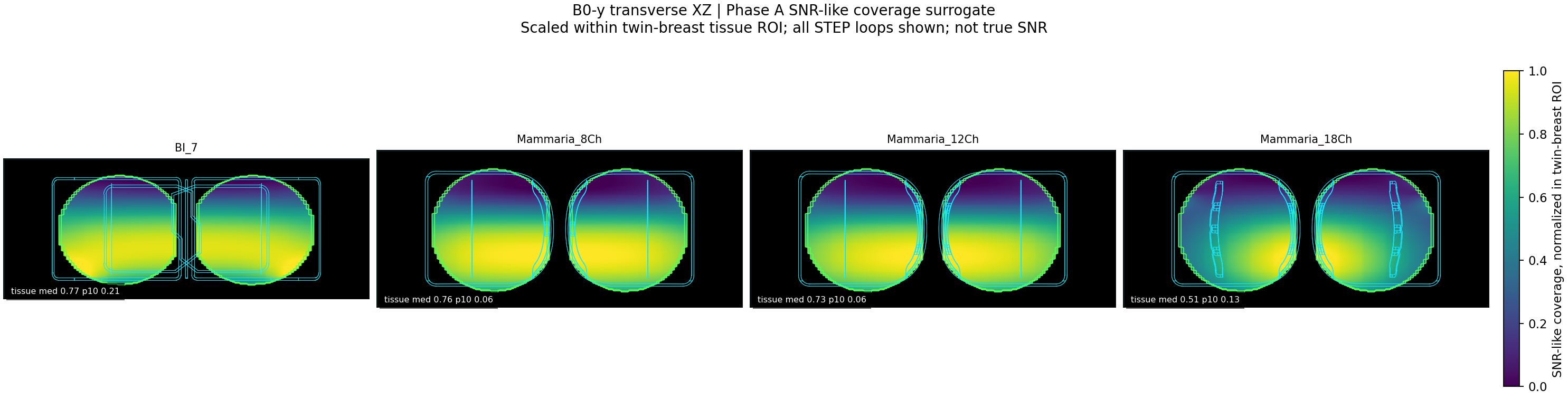

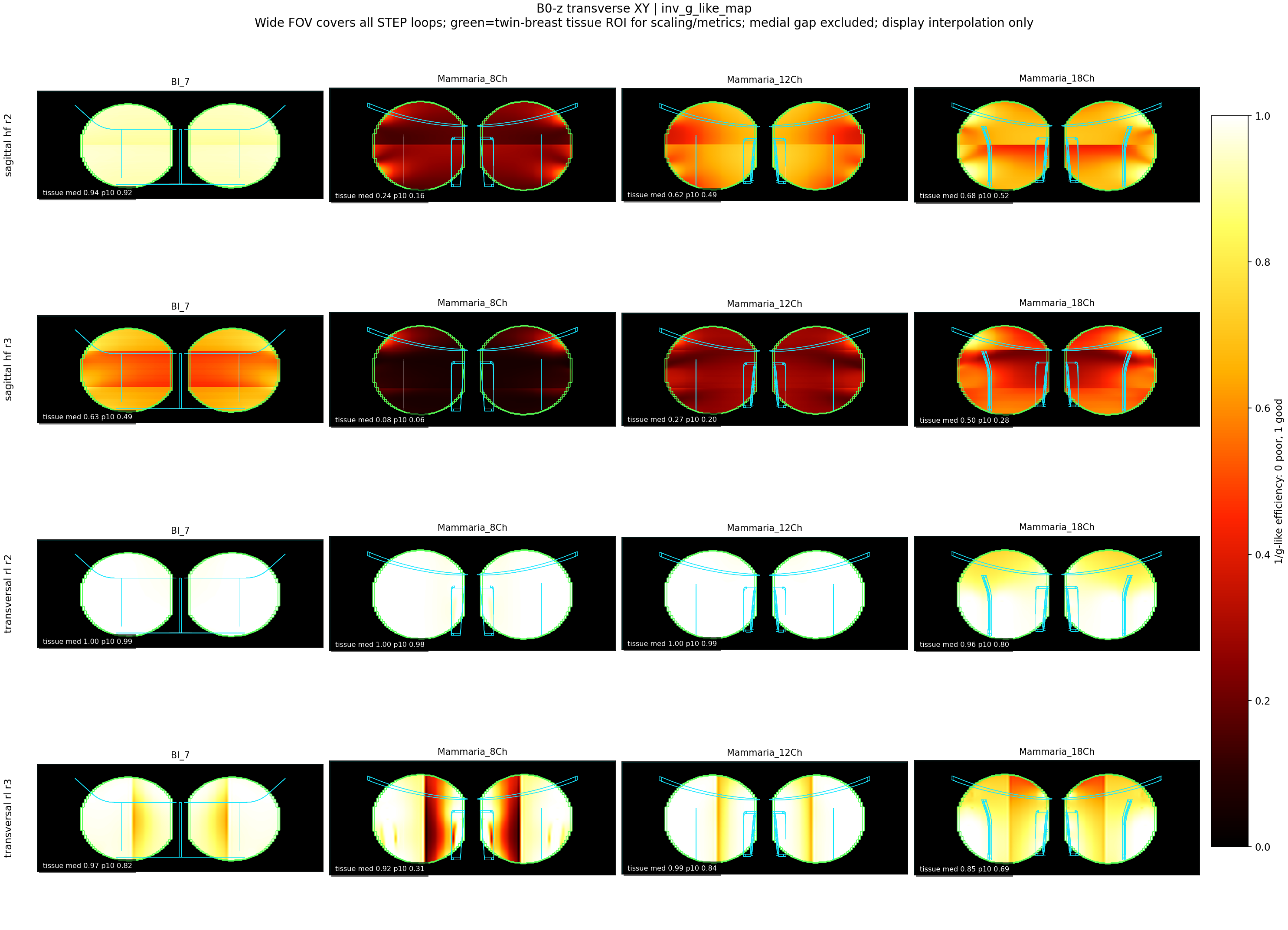

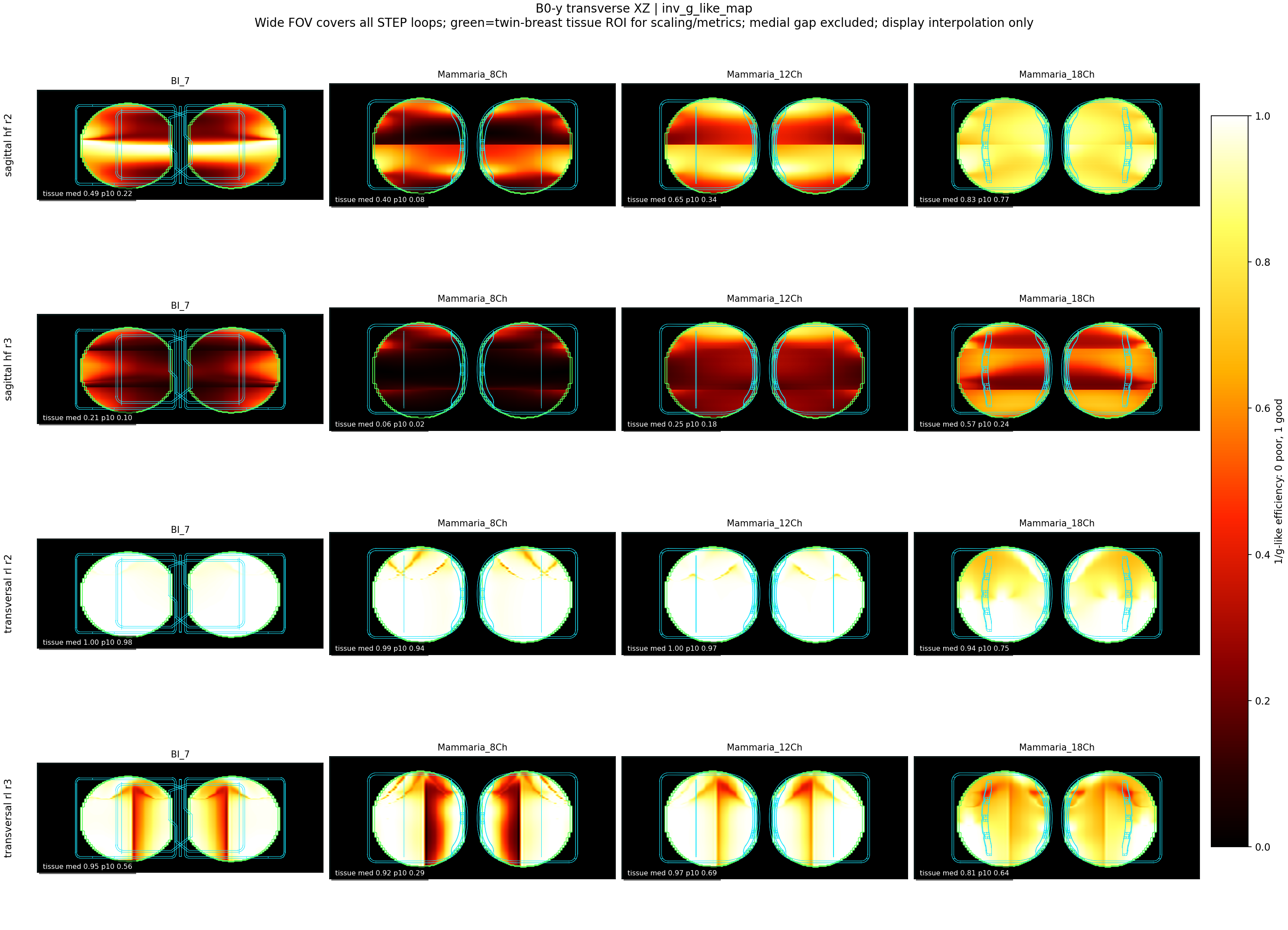

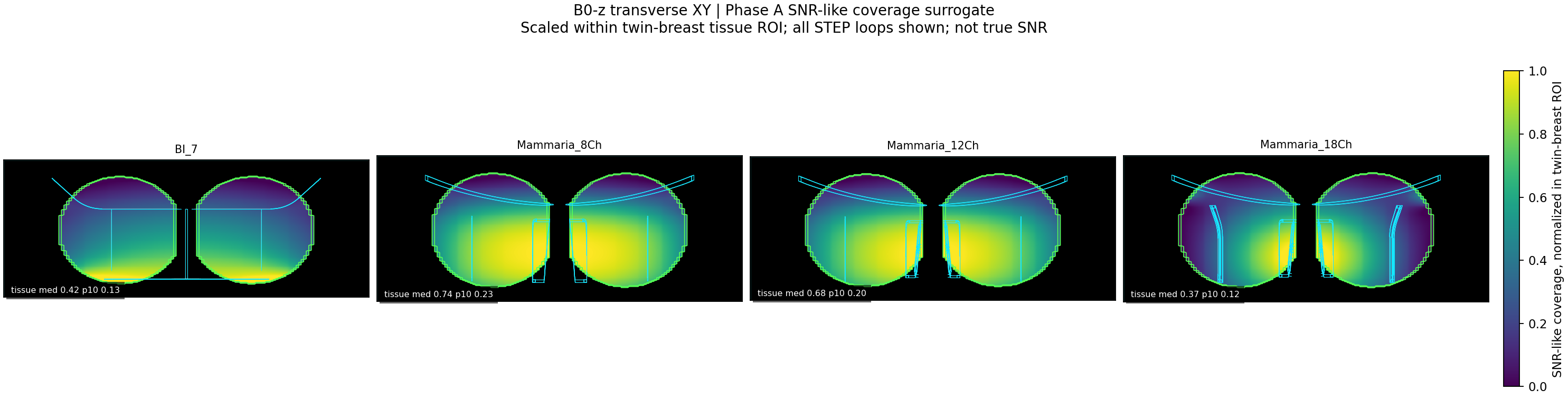

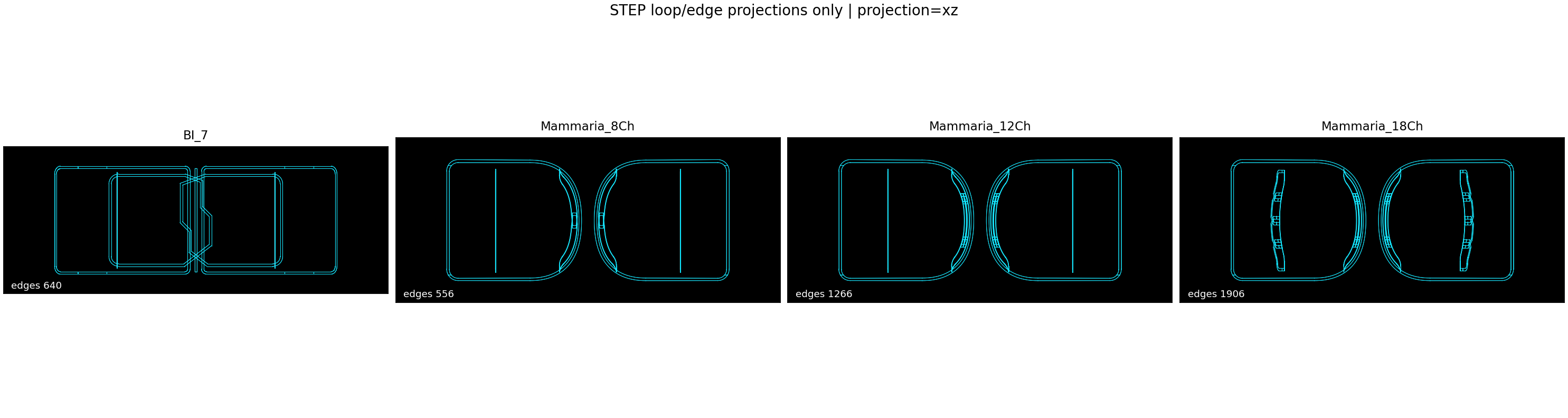

Display change: The circular ROI has been removed. Maps are scaled and summarized within a twin-breast tissue ROI; the medial gap is excluded. The displayed FOV covers all extracted STEP loop/edge traces.

Contract summary

{
  "ok": true,
  "workers_used": 3,
  "circle_main_roi_removed": true,
  "main_display_roi": "twin-breast tissue ROI for map scaling and metrics; wide rectangular STEP-loop FOV for display",
  "medial_gap_excluded_from_scaling": true,
  "loop_overlay_setup_ok_count": 4,
  "image_count": 8,
  "npz_count": 32,
  "qa_flag_count": 0,
  "maps_visually_reviewable_decision": "yes for technical review",
  "recommendation": "Review the public twin-breast FOV loop-overlay images. Accept this visual style only if loop overlays align with maps and structures are plausible inside both breast volumes."
}
